Elac Uni-Fi Reference UCR52

74,900.00

 Speaker type: 3-way, bass reflexTweeter:1-inch soft dome, concentrically mountedMidrange:4-inch aluminum coneWoofer:2 x 5.25?-inch aluminum coneCrossover frequency:240 / 1,800 Hz

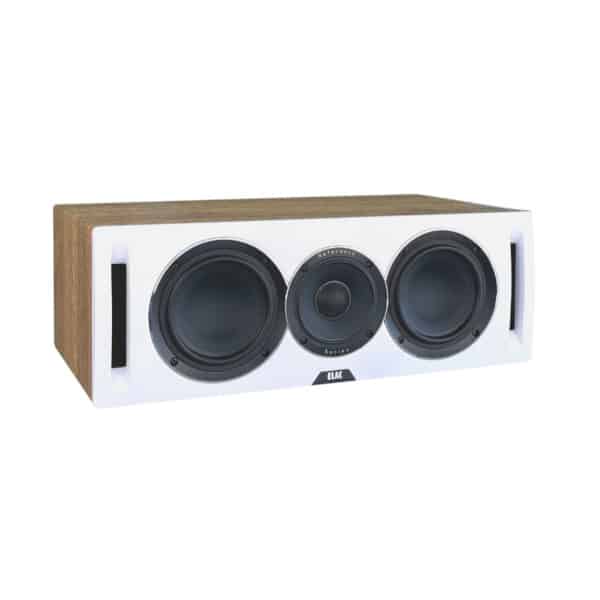

Elac Debut Uni-Fi Reference UCR52 Center Channel Speaker. The new Uni-Fi Reference Series establishes alevel of performance and cosmetics not associated at this price point. Meticulously designed to seamlessly blend with traditional or contemporary styles. The new UniFi Reference series matches fresh visual elegance with unrivalled sound to bring you a new industry benchmark product.The Reference Series’ enhancements include newly designed bass and midrange drivers with cast chassis. You also get improved crossover design, along with new wood-grain vinyl finish options.The newimproved internal bracing of the Uni-Fi Reference UCR52 and dual 5.25″ woofers helprender better low-frequency response than previous Uni-Fi center channel speakers.

Warranty

3-year manufacturer’s warranty

Key Features:

  • True 3-way center channel speaker design
  • 1-inch soft dome, concentrically mounted
  • 2 x 5.25-inch aluminum cone
  • Max Power Input: 140 Watts

Benefits of Elac Debut Uni-Fi Reference UCR52 Center Channel Speaker:

New Concentric Driver
New Concentric Driver

A wide-surround tweeter enhances its low and high frequency extension allowing for improved blending with the midrange. An entirely new midrange driver with large diameter voicecoil, vented rear spider and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone resulting in better clarity.

Newly developed 5.25″ Aluminum Woofer with CastChassis
New Bass Driver

Drastically improving low-end reproduction, this newly developed bass driver features a single piece compound curvature aluminum cone with a large rear vented magnet delivering improved linearity and better low frequency response of any previous Uni-Fi center speaker.

Dual Flared Slot Port
Dual Flared Slot Port

Thenewly developed slot vents utilized both internal and external flares allowing for lower noise and high bass output for improved low frequency dynamics. The curved front baffle of UniFi Reference speakers not only add a stunning visual element, but help create a more detailed image in the sound profile.

Full Perimeter Bracing

Reducing the speaker cabinets influence on the audio quality the Uni-Fi reference line implements full perimeter bracing significantly reducing cabinet vibration and cabinet coloration.

Technical Specifications of Elac Debut Uni-Fi Reference UCR52 Center Channel Speaker:

Brand & Model #Elac Debut Uni-Fi Reference UCR52
Enclosure Type3-way, bass reflex
Tweeter1-inch soft dome, concentrically mounted
Midrange4-inch aluminum cone
Woofer2 x 5.25-inch aluminum cone
Crossover Frequency240 / 1,800 Hz
Frequency Response47,000 Hz to 35,000 Hz
Sensitivity85 dB at 2.83 v/1m
Maximum Power Input140 Watts
Nominal Impedance6
Binding PostsBi-Wire 5-way custom
Cabinet

CARB2 Rated MDF

Cabinet FinishesSatin White with Oak Sides or Satin Black with Walnut Sides
PortsDual Flared Slots
Dimensions & WeightHeight:7.28
Width:20.75
Depth:13.15
Net Weight:29.04 lbs
Brand

Elac

Variant

Uni-Fi Reference

Product Type

Center Channel

The Life of Sound. Backed by 95 Years of Excellence
SKU: UCR52 Category:
