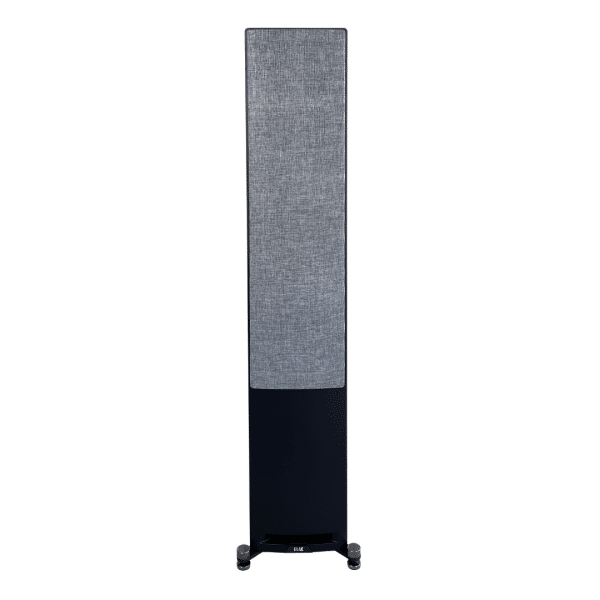

Elac Uni-Fi Reference UFR52 (Pair)


 Speaker type: 3-way, bass reflexTweeter:1-inch soft dome,
concentrically mountedMidrange:4-inch aluminum coneWoofer:3 https://www.elac.com/floorstandi
x 5.25-inch aluminum coneCrossover frequency:220 / 1,800 ufr52/
HzFrequency response:40,000 Hz to 35,000 Hz

Enjoy dynamic sound from your amplifier with the satin white with oak sidesELAC Uni-Fi Reference UFR52 Floorstanding Speaker. It features a three-way design with a 1″ soft-dome tweeter concentrically mounted to a 4″ aluminum cone midrange, plus three 5.25″ aluminum cone woofers. It accepts up to 140W of power from your amplifier and produces a 40 Hz to 35 kHz frequency response for room-filling, full-range sound with enhanced treble. The cabinet is made from MDF and features two rear-firing, dual-flared ports and a front-firing, flared slot port to boost the low frequency effects.

New Concentric Driver with Cast Chassis

A wide-surround tweeter enhances its low and high-frequency extension, allowing for improved blending with the midrange. An entirely new midrange driver with a large-diameter voice coil, vented rear spider, and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone, resulting in better clarity.

Newly Developed 5.25″ Aluminum Woofer with Cast Chassis

Drastically improving low-end reproduction, this newly developed bass driver features a single-piece, compound curvature, aluminum cone with a large rear vented magnet delivering improved linearity and better low-frequency response of any previous Uni-Fi floorstanding speaker.

Full-Perimeter Bracing

Reducing the speaker cabinet’s influence on audio quality, the Uni-Fi Reference line implements full-perimeter bracing, significantly reducing cabinet vibration and cabinet coloration. The cabinets are made from CARB2-rated MDF.

Dual-Flared Slot Vents

The newly developed slot vent utilizes both internal and external flares, allowing for lower noise and high bass output for improved low frequency dynamics. Two rear-firing flared ports are also onboard.
Key Features
  • 3x 5.25″ Aluminum Cone Woofers
  • 4″ Aluminum Cone Midrange
  • 1″ Concentric Soft-Dome Tweeter
  • 140W Maximum Power Handling
  • Bass-Reflex via Three Flared Ports
  • Dual 5-Way Binding Post Pairs
  • MDF Cabinet



Uni-Fi Reference

Product Type

Floorstanding Speaker

The Life of Sound. Backed by 95 Years of Excellence
SKU: UFR52 Category:
