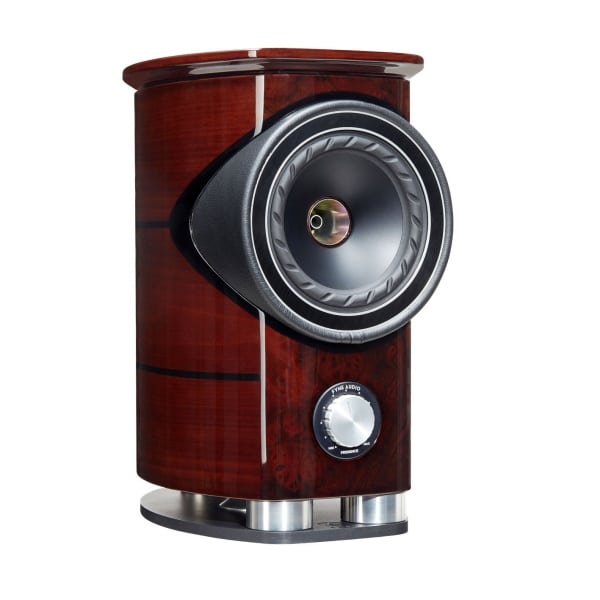

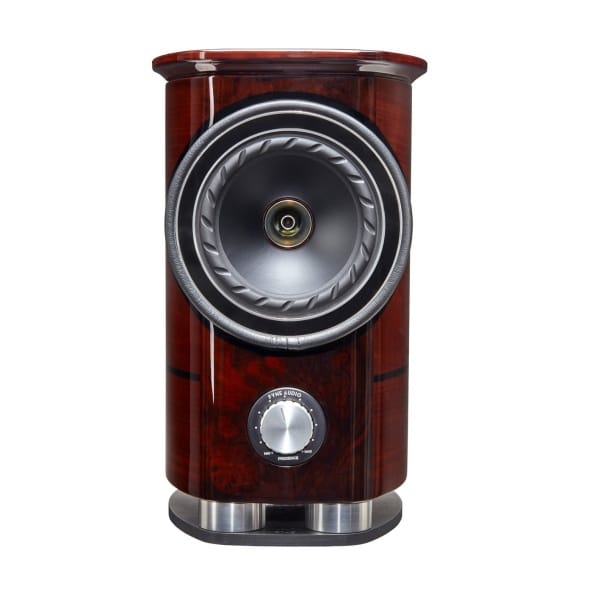

The F1-5 takes the same technology as the larger F1-8 sibling, distilling it into a neat bookshelf speaker design. The hand crafted cabinet is supported on compact machined aluminium plinth that houses Fyne?s state of the art BassTrax LF diffuser. Surrounded by FyneFlute rubber surround, the F1-5 features a 125mm IsoFlare low frequency driver mated to a 19mm magnesium dome compression tweeter to create a point source, time aligned transducer delivering pure isotropic radiation across the entire audio spectrum. Hand finished with care at Fyne Audio?s UK manufacturing facility in stunning real walnut veneer with burr walnut inlay, the F1-5 is the pinnacle of UK Hi-Fi loudspeaker design distilled into a sumptuous compact bookshelf speaker design.
System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser* |
Recommended amplifier power (Watt RMS) | 30 – 100 |
Peak power handling (Watt) | 200 |
Continuous power handling (Watt RMS) | 50 |
Sensitivity (2.83 Volt @ 1m) | 87dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 48Hz – 38kHz |
Drive unit complement | 1 x 125mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFlute surround with 19mm magnesium dome compression tweeter, neodymium magnet system |
Crossover frequency | 1.9kHz |
Crossover type | Single wired passive low loss, 2nd order low pass, 1st order high pass. Deep Cryogenically Treated |
System adjustments | Presence (2.5kHz – 5.0kHz) +/- 3dB |
Dimensions – HxWxD | 321 x 186 x 289mm (12.6 x 7.3 x 11.4?) |
Weight – Each | 5.7kg (12.6lbs) |
Finishes | Piano Gloss Walnut |
Notes:?Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
Brand | |
---|---|
Variant | |
Product Type |
FYNE AUDIO’S IsoFlareTM driver is a point source system whereby the bass / midrange driver shares a common centre with the high frequency unit. Providing outstanding stereo imaging, even off axis, energy is radiated isotropically with constant directivity, following the flare of the driver cone. Sound is produced as if emanating from a single point in space.
