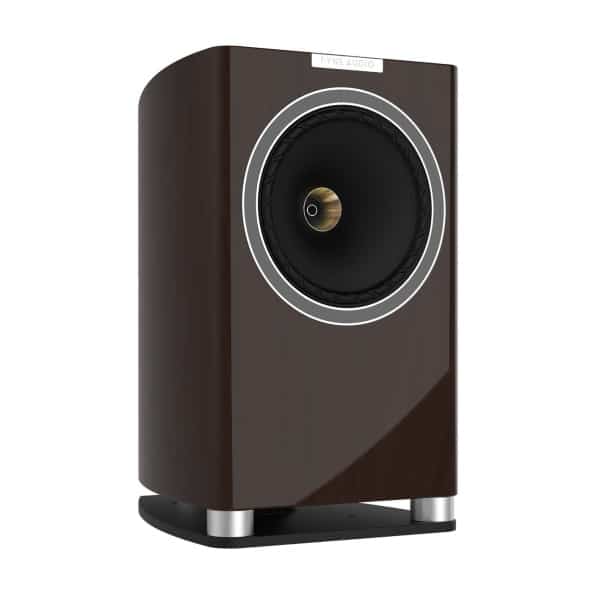

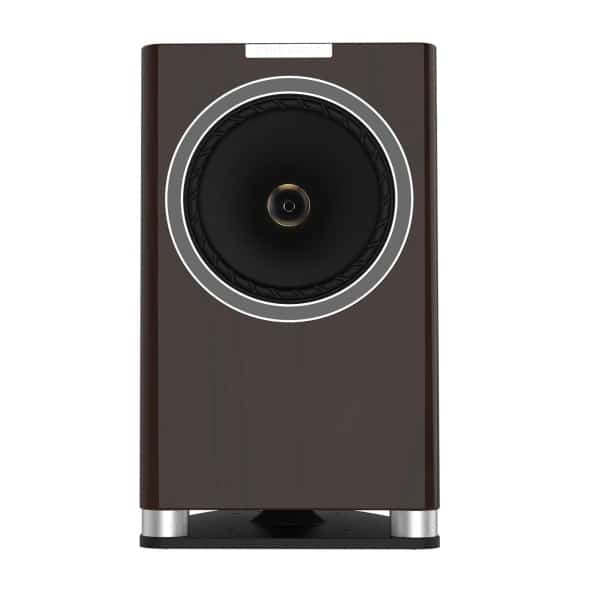

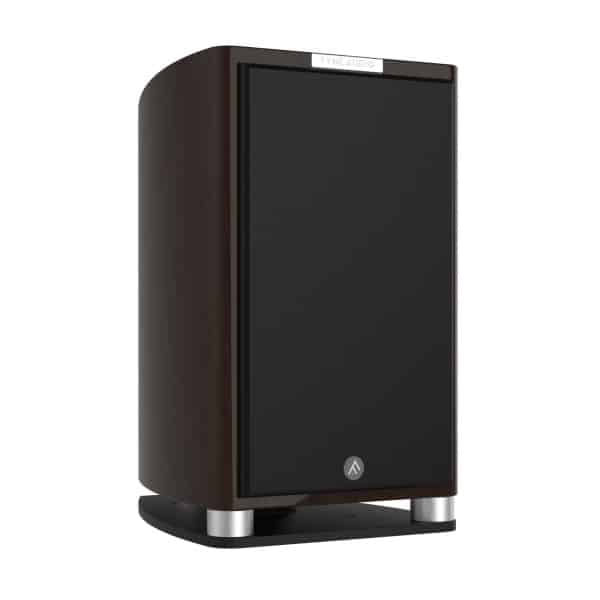

Using trickle down technology from the F1 Series, this elegant, contemporary loudspeaker distils the best of Fyne Audio?s new technologies and expertise into a standmount design. Built in the UK the F701 features a 200mm IsoFlare point source driver with a BassTrax LF diffuser integrated into the down firing port. Luxury high gloss piano lacquer applied to black, white or walnut veneer is the finishing touch to the F701?s handcrafted cabinets. Complemented by Fyne Audio?s uniquely styled?FS8 Stand, refined, articulate and powerful the F701 recreates a truly captivating Hi-Fi listening experience in a sumptuous standmount cabinet.
PRODUCT SPECIFICATIONS
System Type | 2 way, downwards firing port with BassTrax Tractrix diffuser |
Recommended amplifier power (Watt RMS) | 30 ? 180 |
Peak power handling (Watt) | 360 |
Continuous power handling (Watt RMS) | 90 |
Sensitivity (2.83 Volt @ 1m) | 91dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 35Hz ? 34kHz |
Drive unit complement | 1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute? surround with 25mm magnesium dome compression tweeter, neodymium magnet system |
Crossover frequency | 1.7kHz |
Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass Deep Cryogenically Treated. |
Dimensions ? HxWxD | 465 x 278 x 389mm (18.3 x 10.9 x 15.3?) |
Weight ? Each | 13.6 (30.0lbs) |
Finishes | Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
Notes: |
Brand | Fyne Audio |
---|---|
Variant | F700 Series |
Origin |
|
Product Type | Mounts and Stands |
FYNE AUDIO’S IsoFlareTM driver is a point source system whereby the bass / midrange driver shares a common centre with the high frequency unit. Providing outstanding stereo imaging, even off axis, energy is radiated isotropically with constant directivity, following the flare of the driver cone. Sound is produced as if emanating from a single point in space.
