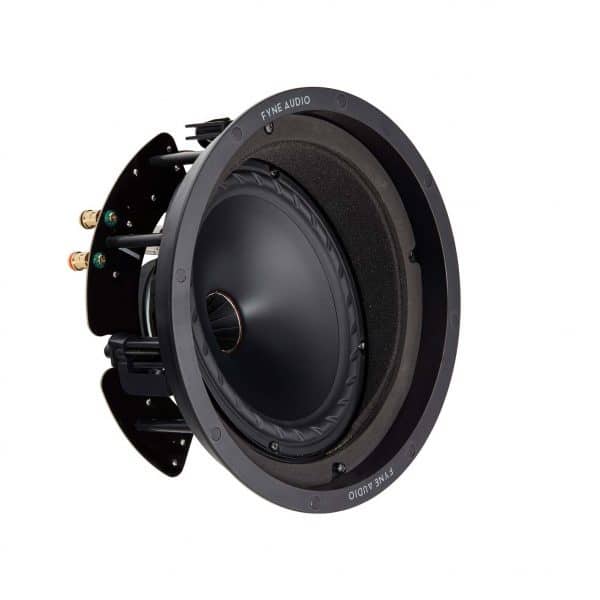

Fa502 ic LCR Angled (Each)


The LCR version of the prestigious FA502iC home install loudspeaker has been designed for installations where speaker placement is offset from the listening position. Ideal for Left, Centre and Right channels of home theatre systems, the 200mm (8”) IsoFlare driver is angled at 15 degrees to the mounting surface. The driver can be orientated in the round cut-out to angle the output directly towards the main listening position. With the same easy fitment, power and performance benefits of the standard FA502iC, the LCR model builds on the range’s versatility and is supplied with a paintable, low profile round grille.

System Type2 way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications
Recommended amplifier power (Watt RMS)30 – 150
Continuous power handling (Watt RMS)75
Peak power handling (Watt)300
Sensitivity (2.83 Volt @ 1m)91dB
Nominal impedance8 Ohm
Frequency response (-6dB typical in room)35Hz – 34kHz
Drive unit complement1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter
Crossover frequency1.7kHz
Crossover typePassive 2nd order low pass, 1st order high pass
Dimensions – Dia x Depth278 x 157mm (10.9 x 6.2”)
Round grille diameter288mm (11.3”)
Square grille dimensionsNot Available
Cut-out diameter255mm (10.0”)
Depth behind mounting surface155mm (6.1”)
Clamp travel0 – 26mm (0 – 1.0”)
Suggested min volume18 L

Fyne Audio


Fyne Custom Installs

Product Type

In Ceiling Speaker , In Wall Speaker

FYNE AUDIO’S IsoFlareTM driver is a point source system whereby the bass / midrange driver shares a common centre with the high frequency unit. Providing outstanding stereo imaging, even off axis, energy is radiated isotropically with constant directivity, following the flare of the driver cone. Sound is produced as if emanating from a single point in space.
