JBL 250WL per unit

Stage 250WL

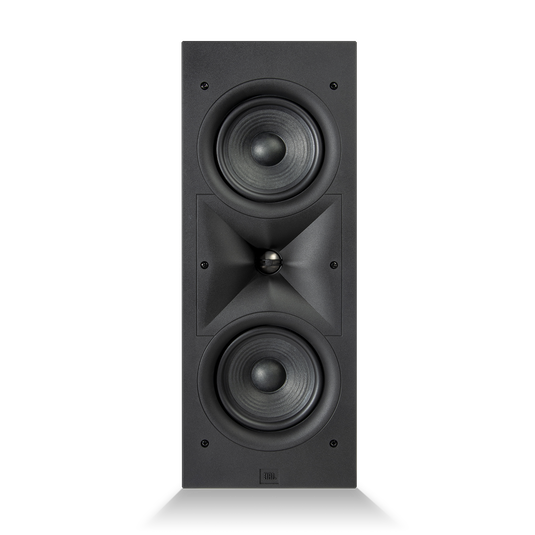

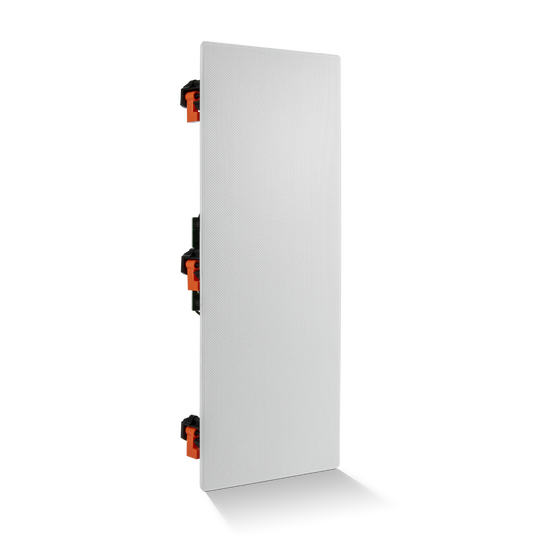

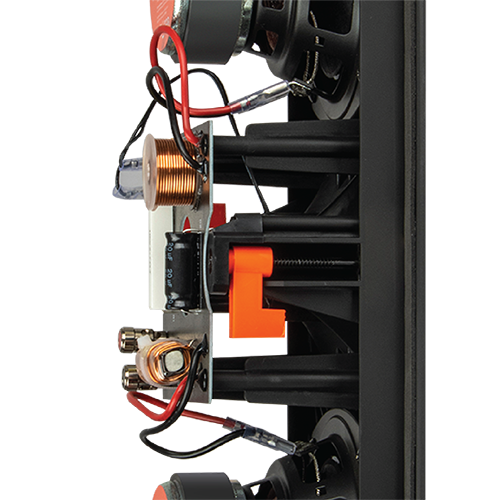

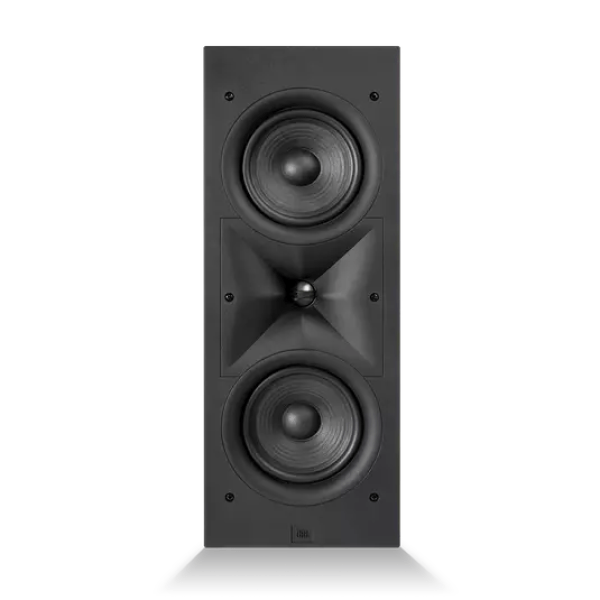

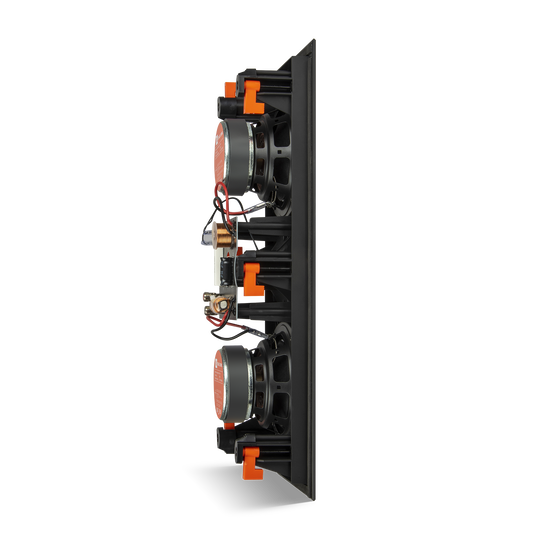

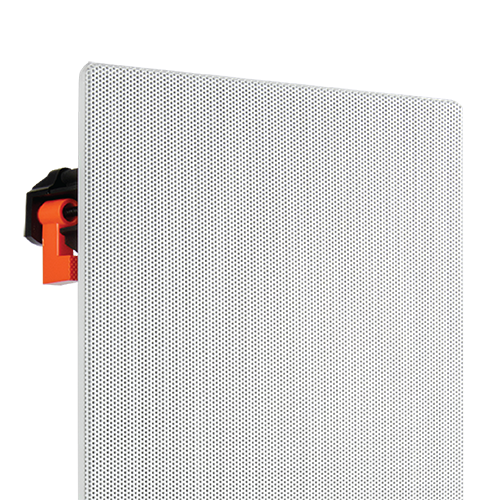

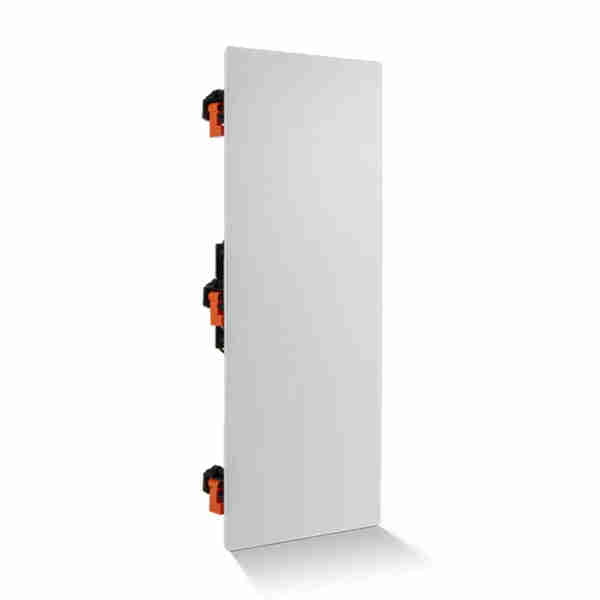

Featuring Dual 5.25″ (130mm) woofers and a 1? (25mm) Aluminum tweeter with an acoustic lens and HDI? waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

High Frequency Transducer

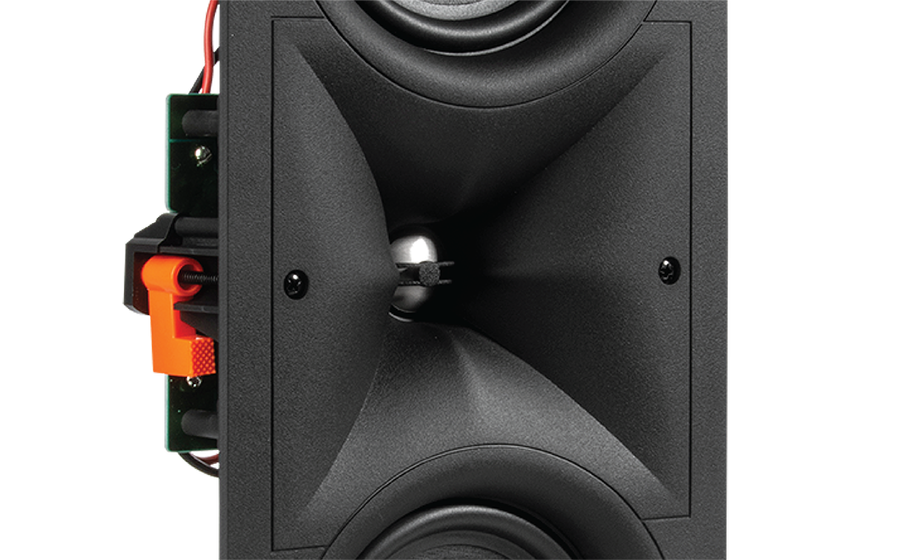

1″ (25mm) Aluminum dome with High-Definition Imaging (HDI?) Waveguide

Low Frequency Transducer

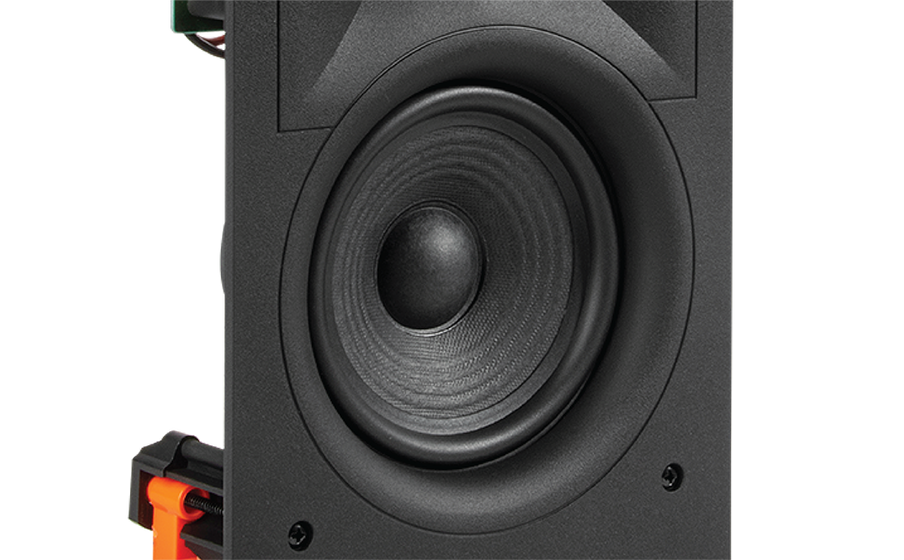

Dual 5.25″ (130mm) Polycellulose cone woofer

Recommended Amplifier Power (Full Range)

20-120W RMS

Frequency Response

52Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m)

90dB

Nominal Impedance

8ohm

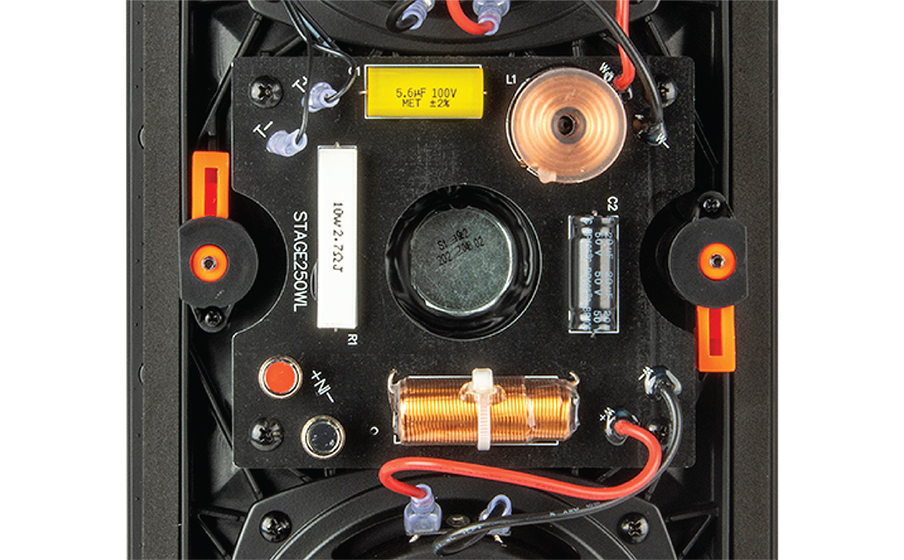

Crossover Frequency

2100Hz

Inputs

Nickel-plated spring-loaded connectors

Grille Dimensions

H 19.5in (496mm) x W 7.6in (194mm)

Cutout Dimensions

H 18.1in (460mm) x W 6.4in (162mm)

Mounting Depth

3.8in (96mm)

Product Weight (Kg)

3.5Kg

Shipping Carton Dimensions

L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)

Shipping Carton Weight

9.61lbs (4.36Kg)
