JBL 260W per unit

Stage 260W

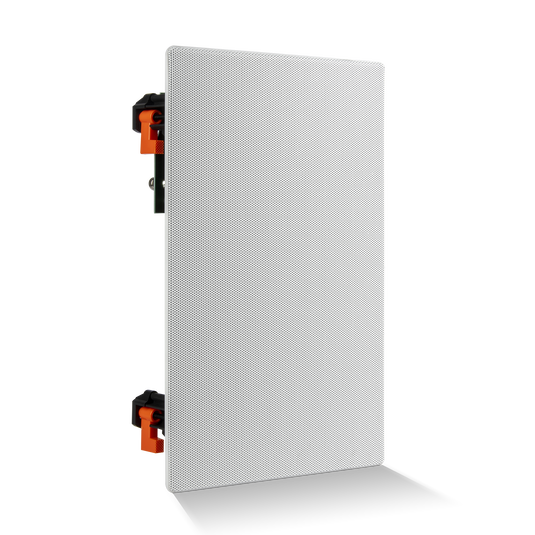

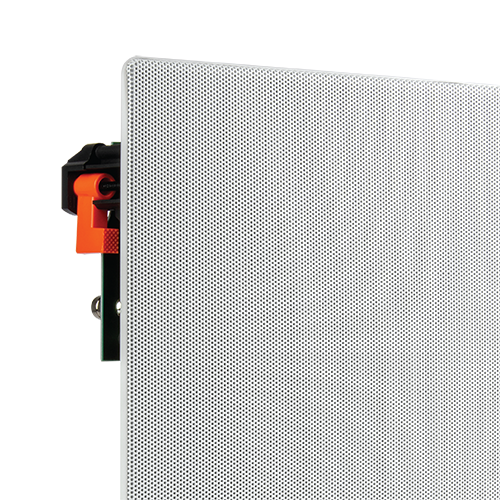

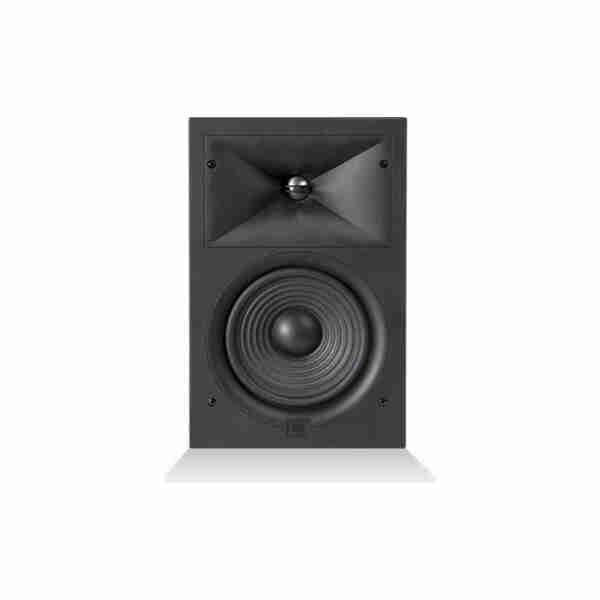

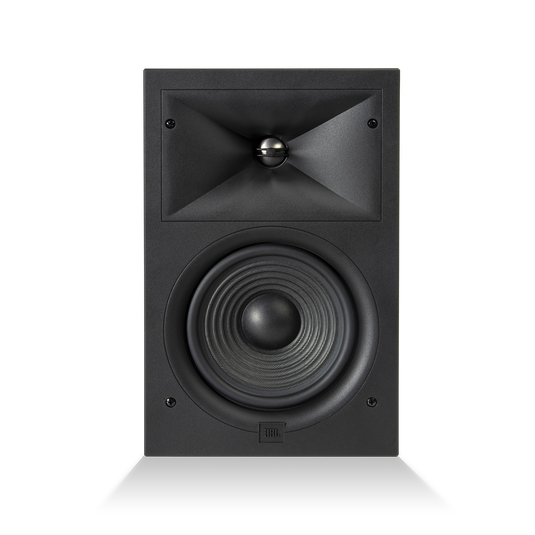

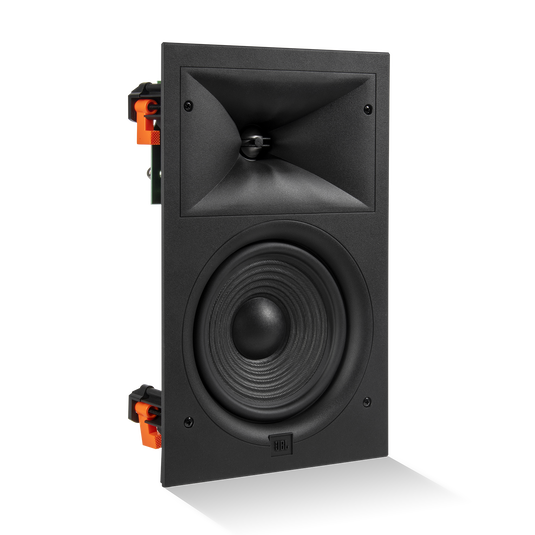

The Stage 260W has a 6.5″ (165mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens and HDI? waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

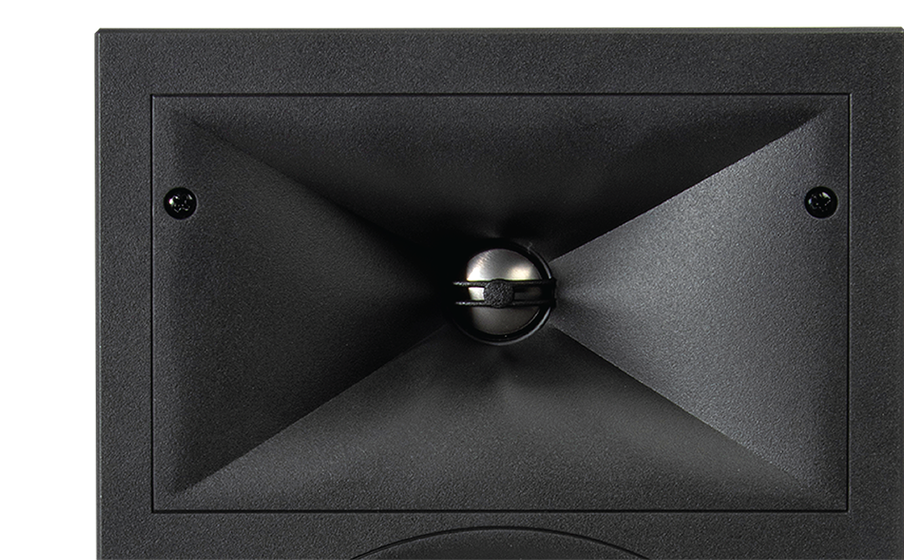

High Frequency Transducer

1″ (25mm) Aluminum dome with High-Definition Imaging (HDI?) Waveguide

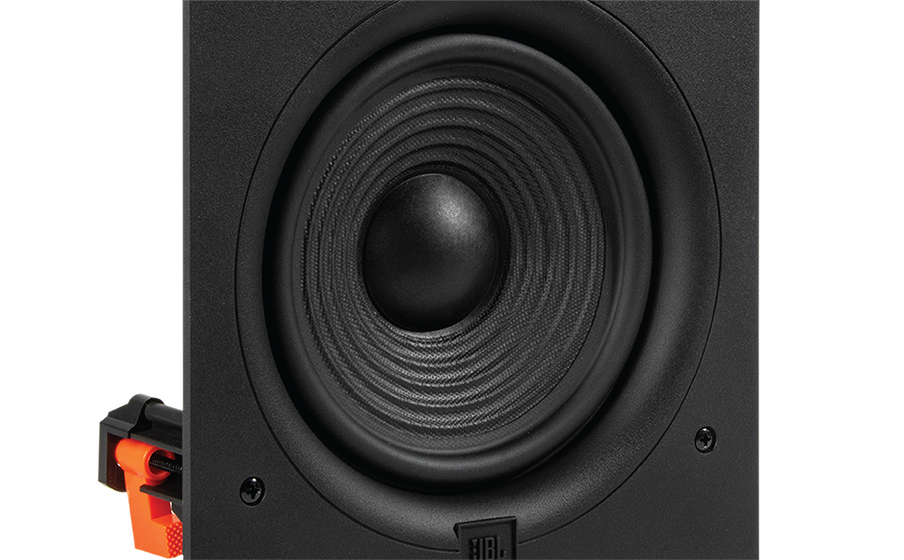

Low Frequency Transducer

6.5″ (165mm) Polycellulose cone woofer

Recommended Amplifier Power (Full Range)

20-100W RMS

Frequency Response

50Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m)

87dB

Nominal Impedance

8ohm

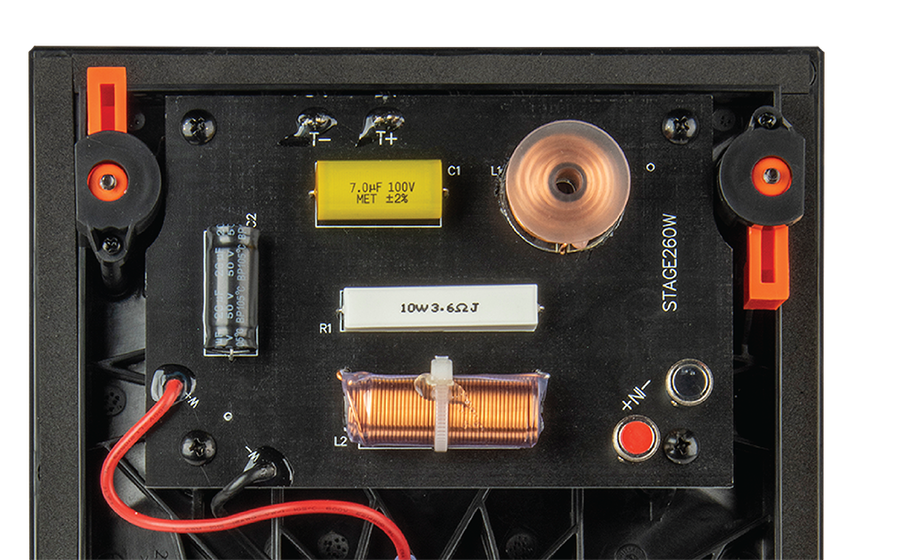

Crossover Frequency

1900Hz

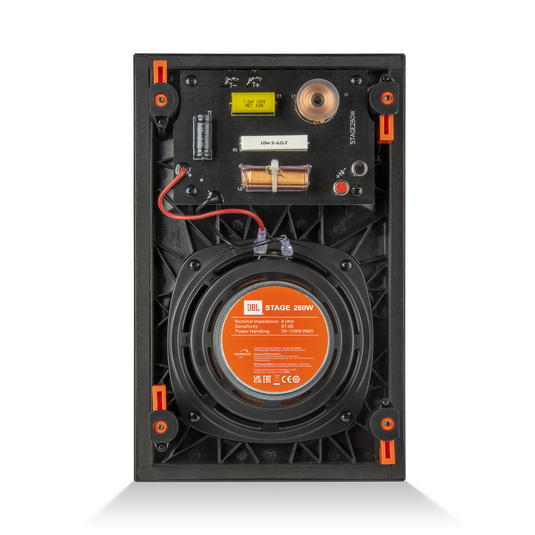

Inputs

Nickel-plated spring-loaded connectors

Grille Dimensions

H 13.3in (339mm) x W 8.5in (217mm)

Cutout Dimensions

H 12.2in (311mm) x W 7.2in (184mm)

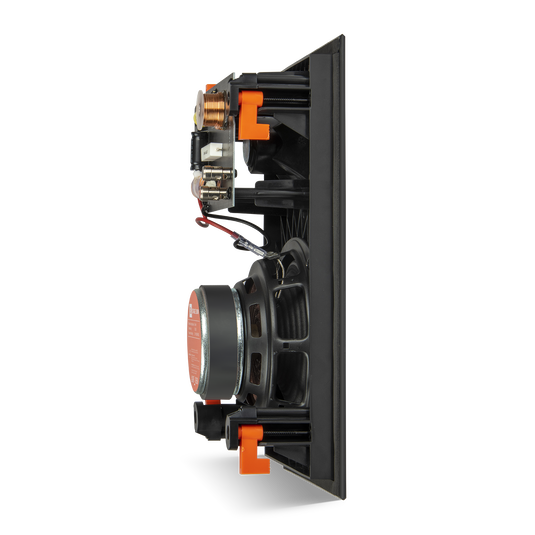

Mounting Depth

3.6in (92mm)

Product Weight (Kg)

2.2Kg

Shipping Carton Dimensions

L 15.6in (396mm) x W 10.8in (274mm) x H 5.1in (130mm)

Shipping Carton Weight

6.48lbs (2.94Kg)
