JBL A135C BLK

JBL A135C

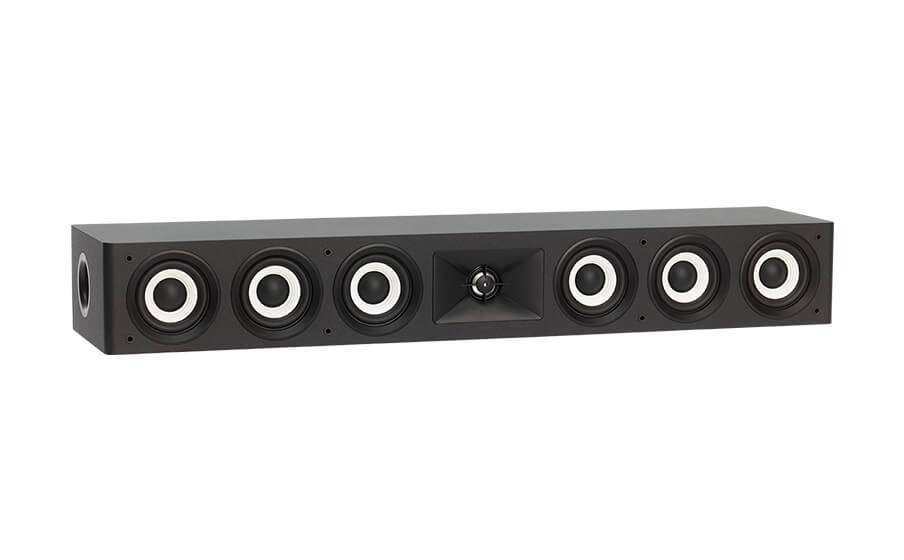

Designed and engineered in JBL?s world-famous acoustic engineering facility in Northridge, California, the Stage A135C is the 6 x 3-inch 2-way center channel loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI?) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 6 x 3-inch (76mm) Polycellulose cone woofers for signature JBL bass.

2 way, 6 x 3″ woofer, 1″ aluminum tweeter center loudspeaker

6 x 3″ (76mm) Polycellulose Low-Frequency Woofer

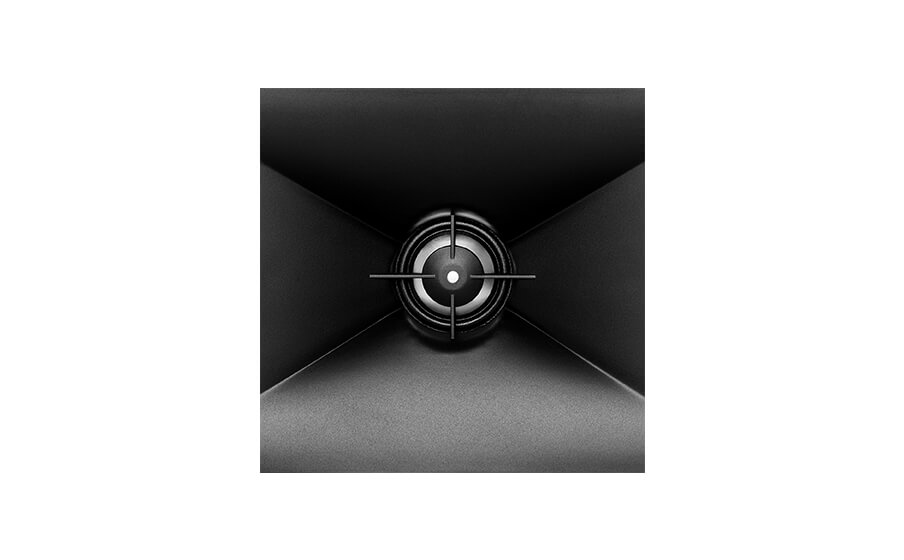

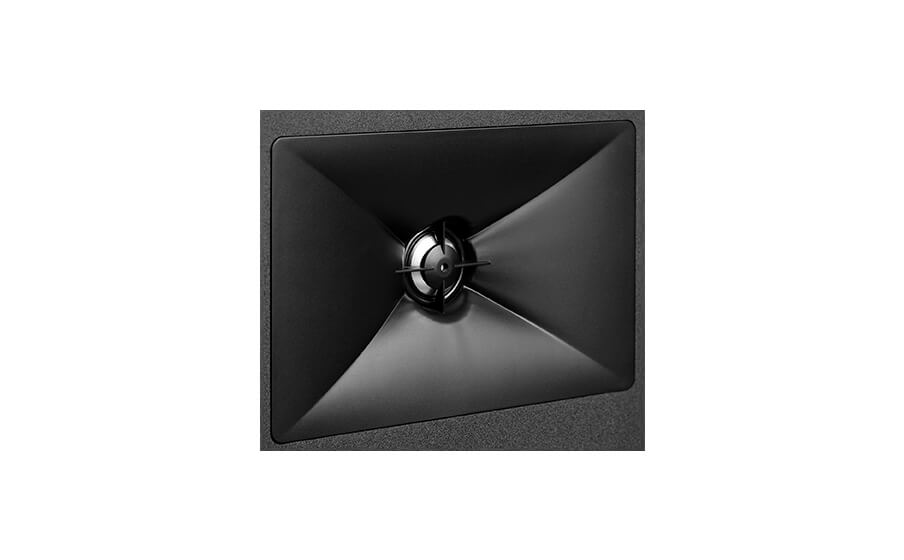

New High Definition Imaging (HDI) Waveguide

1? (25mm) Aluminum Dome Tweeter

Recommended Amplifier Power

20 ? 150W

Frequency Response

75Hz ? 40kHz

Sensitivity

90dB @ 1M, 2.83V

Nominal Impedance

6 Ohms

Crossover Frequencies

2.5kHz

Enclosure Type

Bass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)

745 x 166 x 104mm

Weight

16.42 lbs (7.45kg)

Country of origin

China
