JBL A170

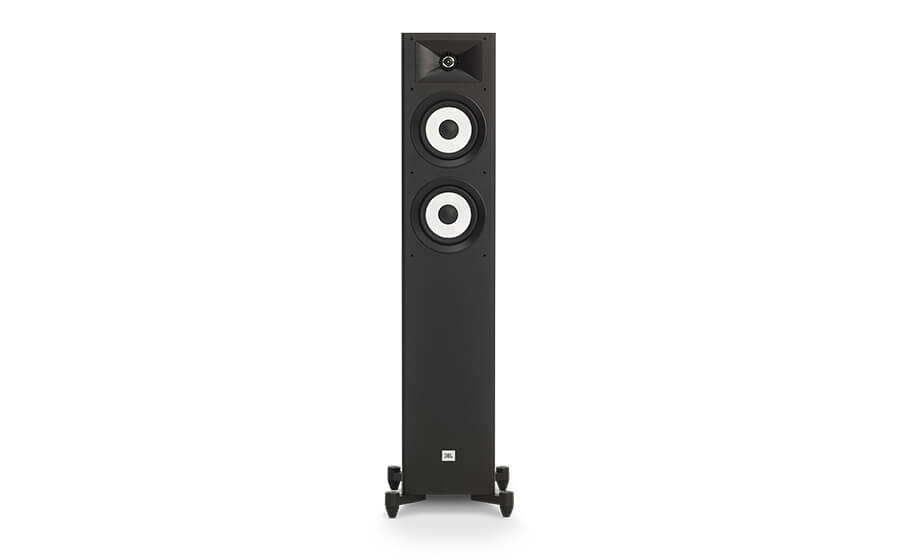

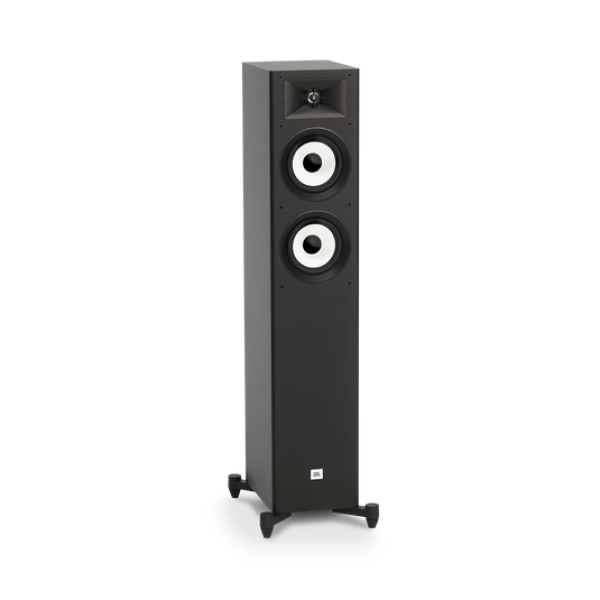

Designed and engineered in JBL?s world-famous acoustic engineering facility in Northridge, California, the Stage A170 is the most compact floorstanding loudspeaker of the JBL Stage Series. The narrow footprint features a 2 ?-way design with patented High-Definition Imaging (HDI?) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.
2.5 way, dual 5.25″, 1″ aluminum tweeter floor standing loudspeaker
2 x 5.25″ (133mm) Polycellulose Low-Frequency Woofer

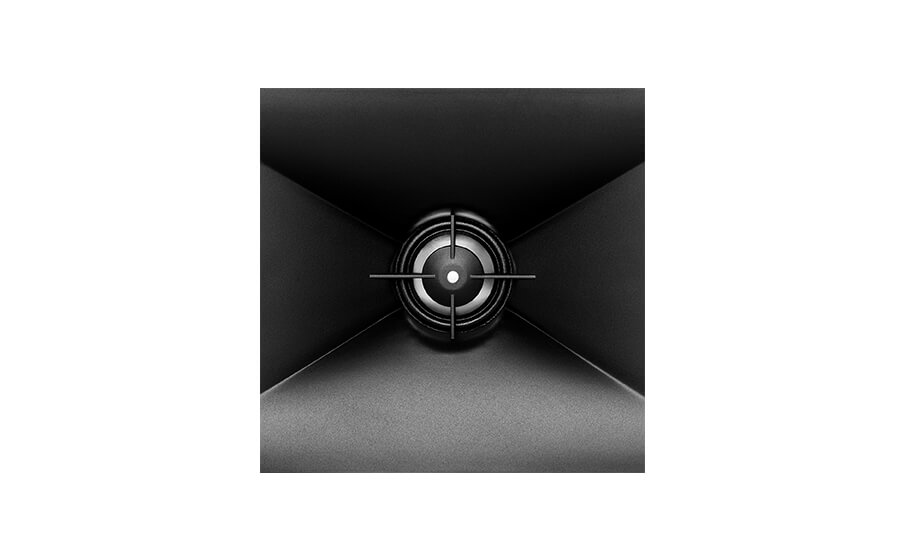

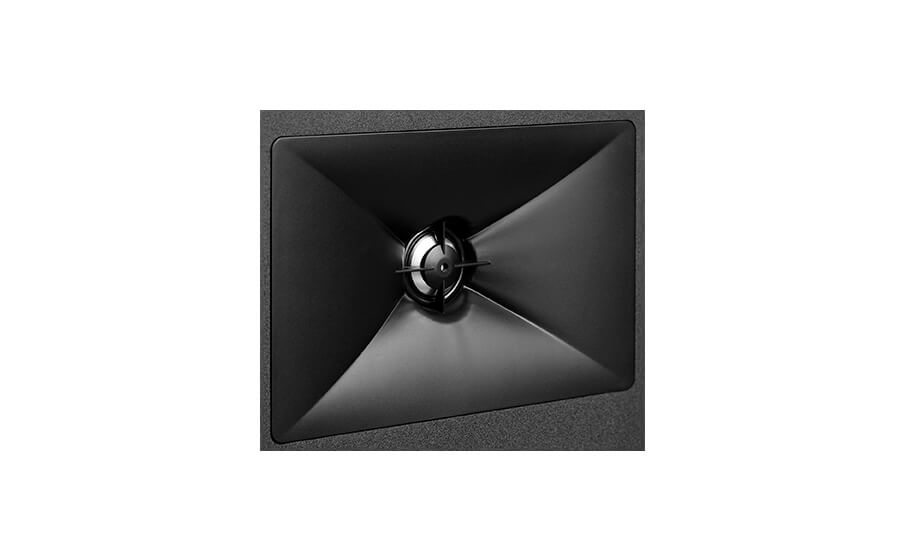

New High Definition Imaging (HDI) Waveguide
1? (25mm) Aluminum Dome Tweeter
- Recommended Amplifier Power
- 20 ? 200W
- Frequency Response
- 44Hz ? 40kHz
- Sensitivity
- 89dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 1.8kHz, 2.8kHz
- Enclosure Type

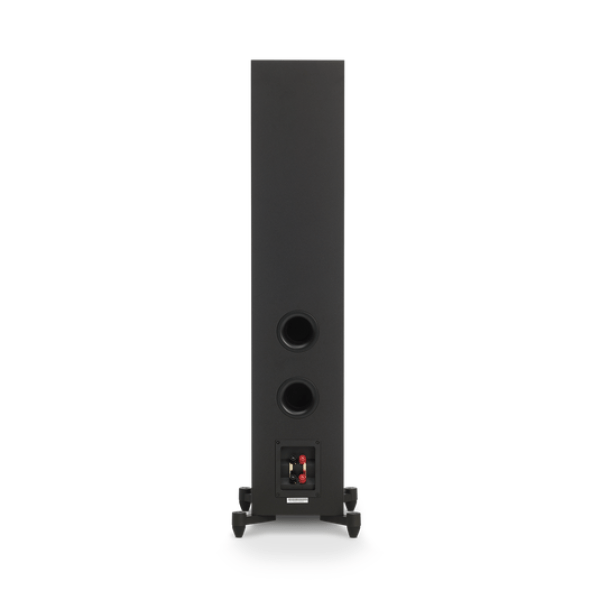

- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 190 x 255 x 930mm
- Weight
- 31.61 lbs (14.34kg)
- Country of origin
- China
- 1 x JBL Stage A170 Floor Standing Loudspeaker
- 4 x Outriggers
- 8 x Screws for Outriggers
- 4 x Floor Spikes
- 4 x Rubber Feet
- 1 x Owner?s Manual
- 1 x Warranty Card
