SDA-8300

564,990.00

8 x 300W Bridgeable Power Amplifier

Get in touch for great deals before you place your order.

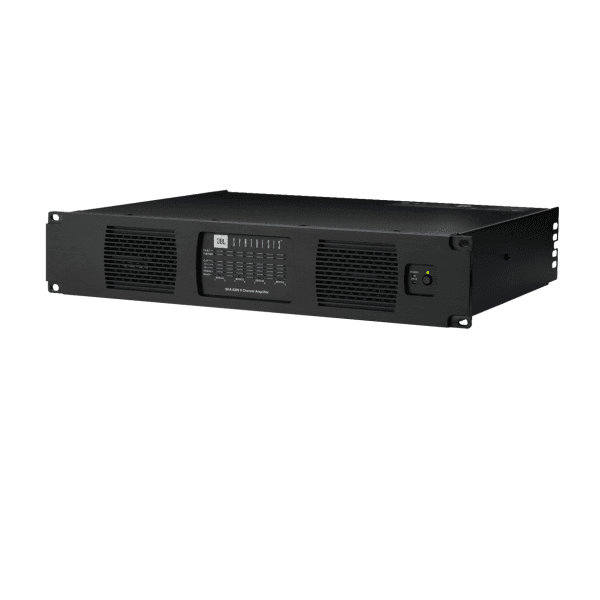

SDA-8300

8-channel Bridgeable Class D Amplifier

The SDA-8300 is a versatile 8-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 300W into 8 ohms and adjacent channel pairs can be bridged to deliver 600W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, and height channel loudspeakers as well as in-wall subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.

Specifications

General Specifications

CoolingContinuously variable speed forced air, front to back airflow
Maximum Fan Noise (dBA SPL @ 1M)47
Required AC Mains (?10%)100Vrms – 240Vrms ~50/60Hz

Audio Specifications

Rated Output Power Into 8 Ohms300W
Rated Output Power Into 4 Ohms300W
Rated Output Power Into 2 Ohms150W
Bridged Output Power Into 8 Ohms600W
High Impedance70-Volt & 100-Volt Capable
Frequency Response (8?, 20Hz – 20kHz)?0.25dB
Analog Input Signal to Noise Ratio104 dB
BLU link Input Signal to Noise Ratio (A-Weighted)>108dB
Total Harmonic Distortion (at full rated power, 20Hz – 20kHz)0.35%
Damping Factor (20Hz to100Hz)>1000
Input Impedance (nominal balanced, unbalanced)10k?, 5k?
Maximum Input Level before Compression (Low Gain Mode)(+)20dB
Load Impedance Stereo/Dual Mode2? – 16?; 70Vrms and 100Vrms
Load Impedance Bridge Mono4? – 16?; 140Vrms and 200Vrms

Dimensions

Width19 in. (48.3 cm)
Height3.5 in. (8.9 cm)
Depth14.25 in. ( 35.63 cm)
Weight23.5lbs (10.66kg)

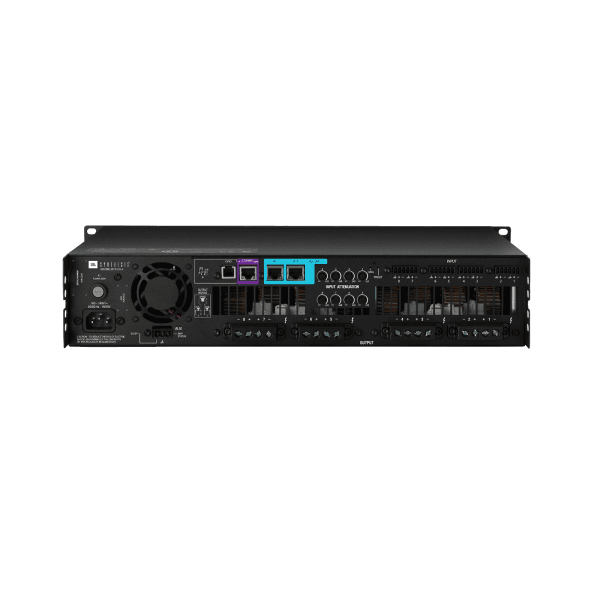

Control and Connection Specifications

Eight balanced line inputs6-pin block connectors (Two channels per block connector)
Eight speaker level outputsTerminal strip (accepts up to 10AWG wire)
BLU link Input/OutputRJ-45 (Category 5e)
EthernetRJ-45 (Category 5e)
Programmable General Purpose Input/Output Ports” 3-pin block connector (Enables SLEEP mode and monitoring of AMP STATUS)”
Power Connector15A IEC
