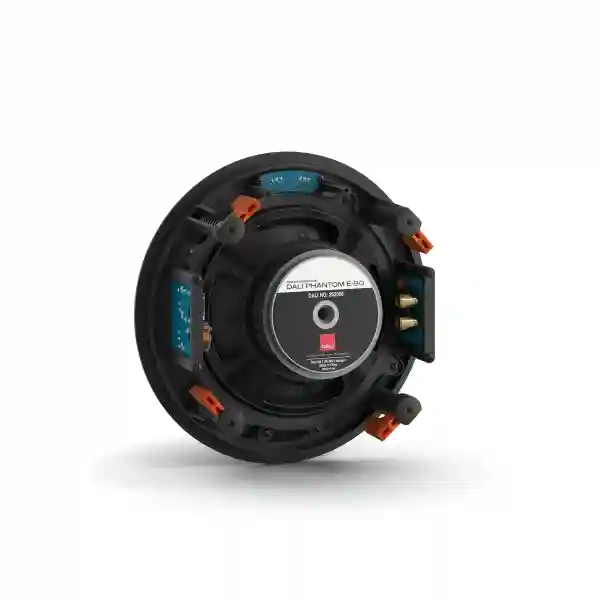

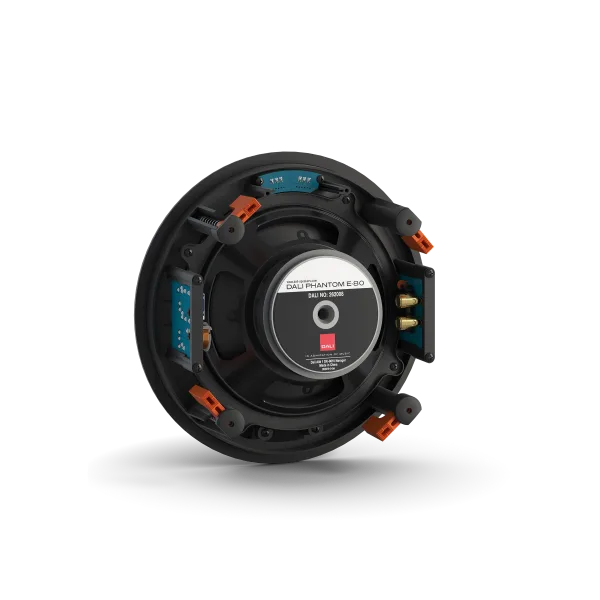

DALI PHANTOM E-80 – Powerful In-Ceiling Speaker

The DALI PHANTOM E-80 is engineered to deliver big sound in large rooms. Featuring an 8-inch woofer, it produces dynamic sound and controlled bass, filling even spacious areas with high-quality audio. This in-ceiling speaker performs just as well as an in-wall option, making it ideal for stereo setups or home theater applications.

Key Features

• 8-inch woofer delivers powerful, room-filling bass
• Wide frequency range of 49Hz – 25,000Hz for rich audio
• High SPL of 107 dB for large room coverage
• Discreet magnetic grille for seamless integration into any home environment
• Wide dispersion technology ensures a larger sweet spot and better sound experience across the room
• Easy installation with dogleg mounting system and slide switches for fine-tuning

Features

Big Sound for Large Rooms

The DALI PHANTOM E-80 is built for large spaces, providing big, dynamic sound even in larger rooms. With its 8-inch polypropylene woofer, it offers a rich bass experience while maintaining clarity and detail across a wide range of frequencies. This speaker is perfect as the main speaker in a living room stereo setup or as part of a home theater surround system.

Enhanced High-Frequency Clarity

The 25mm soft dome tweeter is positioned off-center over the woofer, which helps to eliminate sound coloration commonly associated with coaxial drivers. This design ensures a more natural and clear high-frequency performance, blending seamlessly with the midrange and bass frequencies for a smooth overall sound.

Easy Installation and Discreet Design

The PHANTOM E-80 is designed for easy installation. The dogleg mounting system allows for a quick and secure fit, while the thin magnetic grille helps the speaker blend seamlessly into any room’s decor. Its compact design ensures that it doesn’t overpower the space, while still delivering high-quality sound.

Polypropylene Woofer for Superior Performance

The 8-inch polypropylene woofer ensures minimal distortion and high durability. Designed with low loss principles, it works efficiently with both small and larger amplifiers, providing an optimized sound experience across various setups.

Wide Dispersion Technology

The wide dispersion technology in the PHANTOM E-80 ensures that sound reaches every corner of the room, providing an even audio experience even for off-axis listeners. The speaker also features two slide switches to fine-tune off-axis performance, making it ideal for acoustically challenging rooms.

Specifications

• Frequency Range: 49 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 89.5 dB (2.83V/1m)
• Nominal Impedance: 6 ohms
• Maximum SPL: 107 dB
• Crossover Frequency: 3,200 Hz
• Recommended Amplifier Power: 30 – 150 Watts
• Low Frequency Driver: 1 x 8″ polypropylene woofer
• High Frequency Driver: 1 x 25 mm soft dome tweeter
• Connection Input: Single wire

Perfect for Home Cinema or Large Rooms

The DALI PHANTOM E-80 is the ideal solution for anyone who needs to fill large rooms with high-quality sound. Whether you’re setting up a home theater or creating a dynamic stereo setup, the PHANTOM E-80 will provide exceptional audio performance and seamless integration into your living space.
