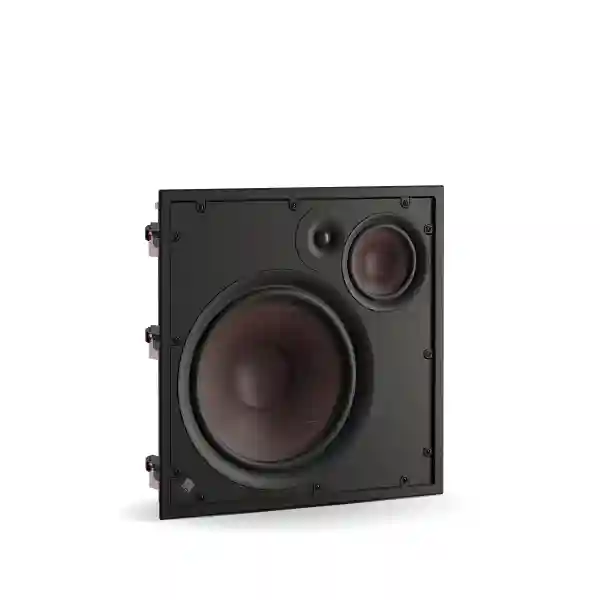

DALI PHANTOM H-120 – Powerful In-Wall Speaker with Deep Bass

The DALI PHANTOM H-120 is the perfect solution for achieving deep, powerful bass in spaces where traditional floorstanding speakers or subwoofers can’t be installed. Featuring a massive 12-inch woofer and a 5″ woofer for midrange frequencies, this 3-way in-wall speaker delivers true Hi-Fi sound with versatility and flexibility. Perfect for achieving full-range sound without needing a separate subwoofer.

Key Features

• 12-inch woofer delivers deep, powerful bass without the need for a subwoofer
• 5″ woofer for precise midrange reproduction
• High-quality crossover with audiophile-grade components
• Lightweight 28mm soft dome tweeter for accurate, detailed high frequencies
• Wide dispersion technology for a larger sweet spot and better sound across the room
• Easy installation with the dogleg mounting system
• Wood fibre cone technology ensures high-resolution midrange and coherent bass

Features

Deep and Powerful Bass

The DALI PHANTOM H-120 features a huge 12-inch woofer that provides the deep bass you would expect from a traditional floorstanding speaker, but in an in-wall form factor. Paired with a 5” midrange woofer, this speaker offers a full-range listening experience without the need for a separate subwoofer, making it ideal for installations where space is limited.

Compact Design with Hi-Fi Performance

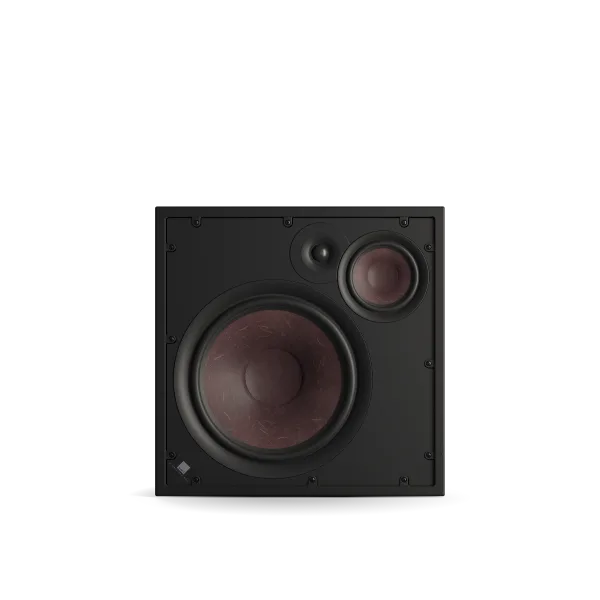

The compact design of the PHANTOM H-120 allows it to be mounted directly into the wall without sacrificing Hi-Fi performance. The drivers are securely mounted in a solid MDF front baffle, and the tweeter is placed close to the woofer to ensure optimal integration. The dogleg mounting system allows for a fast, secure installation.

High-Quality Audiophile Crossover

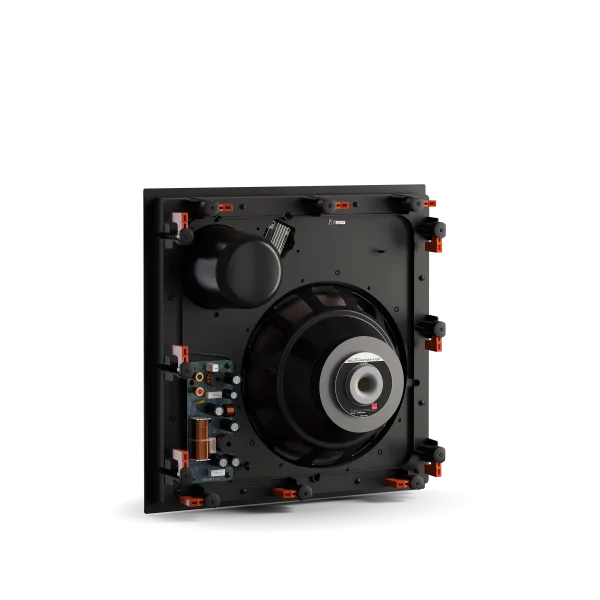

The PHANTOM H-120 crossover is built with audiophile-quality components to ensure the best signal transmission. It also includes a PPTC (Polymeric Positive Temperature Coefficient) safety function, which protects the driver components from overheating during extended, high-volume use. The speaker terminals are optimized for the shortest possible signal path, ensuring a solid and long-lasting connection to your speaker cables.

Accurate High Frequencies with Soft Dome Tweeter

The 28mm soft dome tweeter in the PHANTOM H-120 is designed with ultra-lightweight fabric and a high-performance magnet motor system to produce detailed high frequencies with minimal distortion. The tweeter’s front plate is positioned near the dome, improving its frequency response, wide dispersion, and integration with the midrange and bass drivers.

Wood Fibre Cone Technology

The PHANTOM H-120’s woofer uses DALI’s signature wood fibre cone technology, which provides high resolution and precise, coherent bass. This technology allows the speaker to render even the smallest details in music with minimal coloration, ensuring a natural, lifelike soundstage.

Wide Dispersion for Superior Sound Coverage

The PHANTOM H-120 incorporates wide dispersion technology, which optimizes the listening experience across a larger sweet spot. Whether you are seated off-axis or at a distance, the sound remains balanced and clear. This makes the PHANTOM H-120 perfect for larger rooms or home theaters where speakers need to be mounted flush with the wall.

Specifications

• Frequency Range: 32 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 90 dB (2.83V/1m)
• Nominal Impedance: 4 ohms
• Maximum SPL: 112 dB
• Crossover Frequencies: 850 / 4,000 Hz
• Recommended Amplifier Power: 50 – 400 Watts
• Low Frequency/Midrange Drivers: 1 x 5½” / 1 x 12″ woofer
• High Frequency Driver: 1 x 28 mm soft dome tweeter

Perfect for Hi-Fi Sound in Limited Spaces

The DALI PHANTOM H-120 is a high-performance in-wall speaker that brings the full-range sound you would expect from large, floorstanding speakers. Whether you’re looking for bass-heavy music reproduction or immersive home theater sound, the PHANTOM H-120 offers a solution that integrates easily into your space, providing powerful sound without taking up any floor space.
