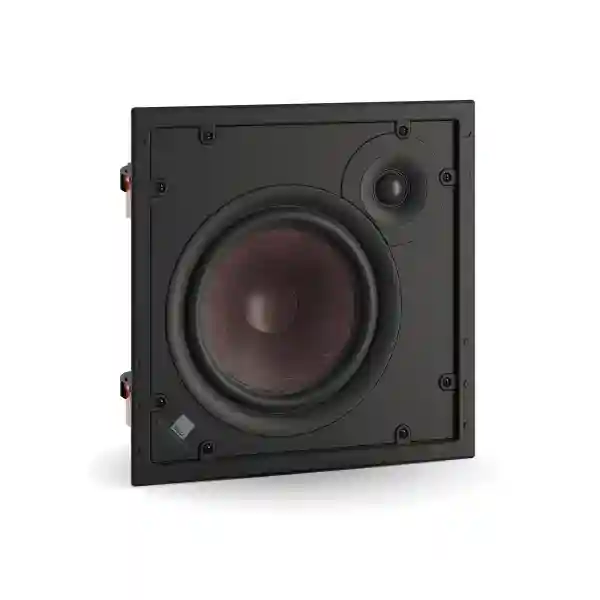

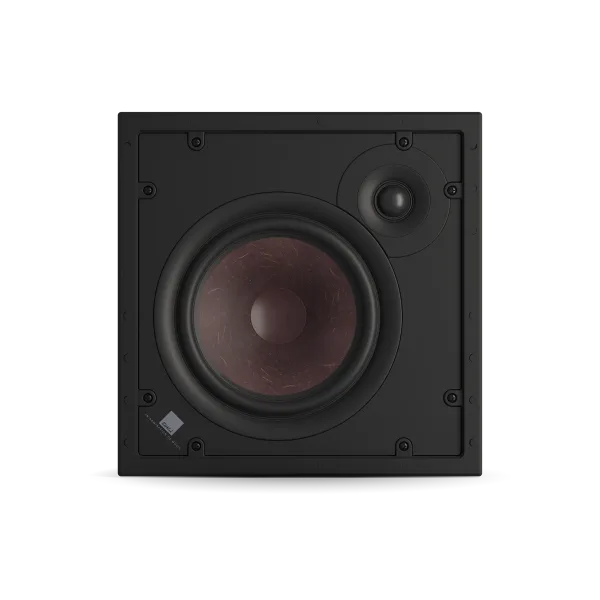

DALI PHANTOM H-80 – Powerful In-Wall Speaker for Large, Dynamic Sound

The DALI PHANTOM H-80 is the ideal choice when you require large, dynamic, and well-defined sound. Equipped with an 8″ woofer, this in-wall speaker delivers clear, detailed, and controlled sound, extending into every corner of even the largest rooms and home cinemas. Designed for optimal Hi-Fi performance, the PHANTOM H-80 provides a full-range audio experience without the need for an additional subwoofer. Whether used in-wall or in-ceiling, it offers impressive versatility and flexibility in any installation.

Key Features

• Large 8″ woofer for dynamic and well-defined sound
• True full-range speaker with no need for supplemental subwoofer
• High-quality audiophile crossover components for optimal sound performance
• 28mm soft dome tweeter for clear and accurate high frequencies
• Wood fibre cone technology for precise midrange and bass
• Wide dispersion for an expansive sweet spot and room coverage
• Easy installation with the dogleg mounting system

Features

True Full-Range Speaker

The DALI PHANTOM H-80 provides a powerful and dynamic audio experience with its 8″ woofer, offering a full-range sound that fills large spaces. No additional subwoofer is needed, as the PHANTOM H-80 delivers deep bass, clear midrange, and precise high frequencies—all from a single speaker.

Compact Design with Premium Performance

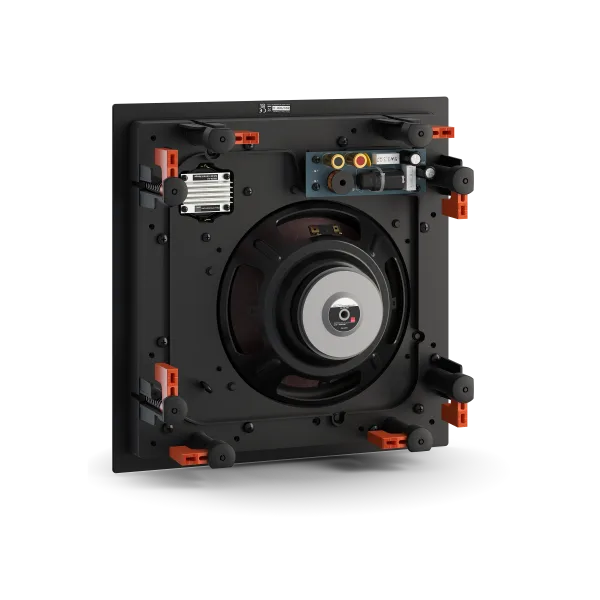

The PHANTOM H-80 combines traditional cabinet speaker design with the flexibility of in-wall installation. The drivers are mounted securely in a solid MDF front baffle, and the tweeter is positioned close to the woofer for seamless integration. Thanks to its dogleg mounting system, installation is quick and straightforward.

Audiophile-Grade Crossover

Every component in the PHANTOM H-80‘s crossover is chosen for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient) safety function, which protects the speaker from damage caused by overheating. This ensures that the driver components stay safe, even when playing at high volumes over extended periods.

High-Resolution Sound with Soft Dome Tweeter

The 28mm soft dome tweeter of the PHANTOM H-80 offers clear and accurate high frequencies, enhancing the integration with the woofer for a balanced sound. The lightweight fabric and advanced magnet motor system ensure high efficiency and minimal distortion.

Wood Fibre Cone for Precise Midrange and Bass

Thanks to DALI’s signature wood fibre cone technology, the PHANTOM H-80 reproduces midrange and bass with exceptional clarity. The cone’s design minimizes distortion and ensures accurate reproduction of the smallest musical details, delivering a high-resolution soundstage.

Wide Dispersion for Better Room Coverage

The PHANTOM H-80 features DALI’s wide dispersion principle, optimizing off-axis listening and providing a larger sweet spot. This ensures that everyone in the room enjoys consistent and immersive sound, regardless of their position.

Specifications

• Frequency Range: 46 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 90 dB (2.83V/1m)
• Nominal Impedance: 6 ohms
• Maximum SPL: 109 dB
• Crossover Frequency: 2,350 Hz
• Recommended Amplifier Power: 30 – 200 Watts
• Low Frequency/Midrange Driver: 1 x 8″ woofer
• High Frequency Driver: 1 x 28 mm soft dome tweeter

Perfect for Large Rooms and Home Cinemas

The DALI PHANTOM H-80 is ideal for larger rooms or home cinema setups where dynamic and well-defined sound is crucial. The 8″ woofer and advanced driver technology ensure that the speaker can fill large spaces with rich, full-range sound. The wide dispersion technology enhances room coverage, making the PHANTOM H-80 the perfect choice for any audio setup.
