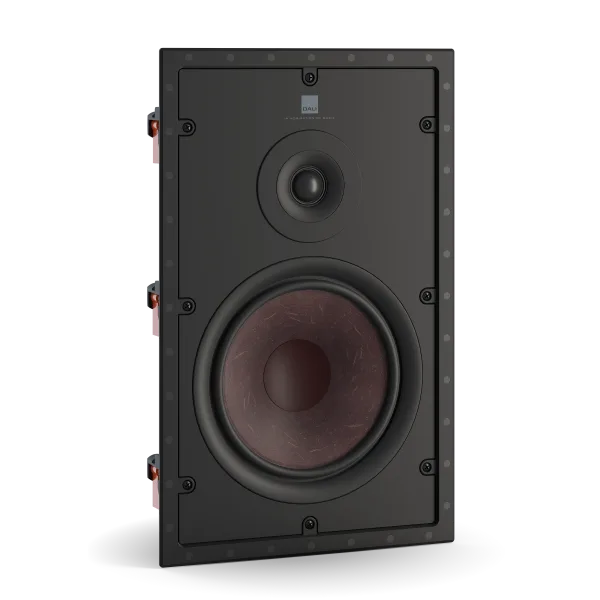

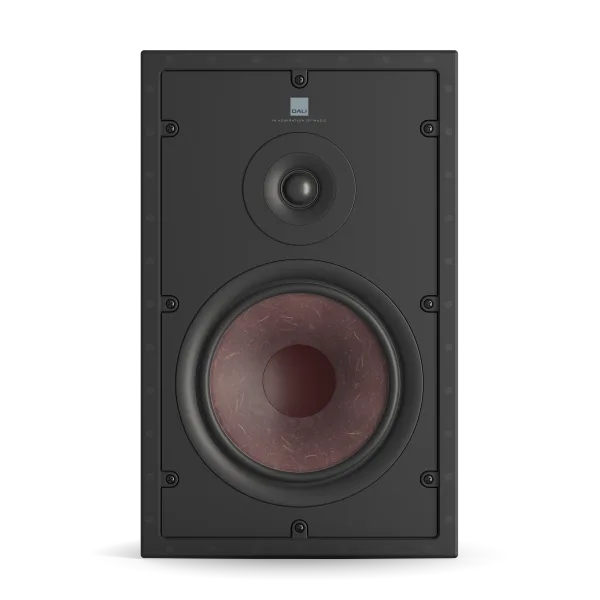

DALI PHANTOM H-80 R – Rectangular In-Wall Speaker with Powerful Sound

The DALI PHANTOM H-80 R is the rectangular version of the acclaimed PHANTOM H-80 speaker, designed to offer the same detailed, dynamic sound, and great balance between size and performance. Equipped with a powerful 8″ woofer, this in-wall speaker delivers an exceptional listening experience while maintaining a discreet appearance in your home.

Key Features

• Rectangular form factor for a more traditional look and easier integration
• Large soundstage and natural dynamics to replace traditional bookshelf or small floorstander speakers
• 8″ woofer for deep, punchy bass and coherent midrange
• Wood fibre cone technology for high-resolution sound and improved bass accuracy
• 28mm soft dome tweeter for detailed high frequencies and seamless integration
• Low resonance MDF baffle for reduced distortion and improved sound clarity
• Easy installation with DALI’s dogleg mounting system for quick and secure fitting

Features

Incredible Sound Quality

The PHANTOM H-80 R delivers a no-compromise sound experience, filling your room with a large soundstage and natural dynamics. Designed to replace traditional bookshelf and floorstanding speakers, it provides the same high-performance audio in a more discreet, in-wall form. The speaker’s minimized cabinet edge diffraction delivers a smooth midrange, improved bass alignment, and better time response, ensuring clear and detailed sound reproduction.

Rectangular Form Factor

Designed for those who prefer a more traditional, rectangular look, the PHANTOM H-80 R offers the same great performance as the square PHANTOM H-80. Its rectangular shape allows for easier integration into various room layouts, blending seamlessly with your interior design.

Wood Fibre Cone for Precise Sound

The wood fibre cone technology used in the PHANTOM H-80 R’s 8″ woofer ensures high-resolution midrange and precise bass reproduction. This signature technology from DALI helps to capture every small detail in the music, rendering a natural, detailed soundstage that brings your audio to life.

Deep Bass Response

Optimized for deep bass, the PHANTOM H-80 R uses large magnet systems and an efficient moving system with long excursion to provide great bass without sacrificing midrange detail. The result is a rich, full sound profile that remains punchy, fast, and accurate at both high and low frequencies.

Lightweight Soft Dome Tweeter

The 28mm soft dome tweeter offers exceptional accuracy and integration with the woofer, ensuring high-frequency clarity. By positioning the tweeter front plate close to the dome, the PHANTOM H-80 R combines an extended frequency response with wide dispersion, reducing colouration for a more natural sound.

Low Resonance Baffle for Better Sound Clarity

The low resonance MDF baffle construction enhances the speaker’s performance by reducing colouration and distortion. The thick, stiff outer trim of the baffle minimizes resonance and provides a better connection with the wall, ensuring a more accurate and high-fidelity listening experience.

Specifications

• Frequency Range: 46 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 90 dB (2.83V/1m)
• Nominal Impedance: 6 ohms
• Maximum SPL: 109 dB
• Crossover Frequency: 2,350 Hz
• Recommended Amplifier Power: 30 – 200 Watts
• Low Frequency/Midrange Driver: 1 x 8″ woofer
• High Frequency Driver: 1 x 28mm soft dome tweeter

Seamless Integration for Any Room

The DALI PHANTOM H-80 R is perfect for any room that demands high-performance audio in a discreet, visually appealing form. Whether you’re upgrading your home theater or enhancing the sound in a larger room, this in-wall speaker provides deep bass, clear highs, and a natural, dynamic soundstage that will impress any listener.
