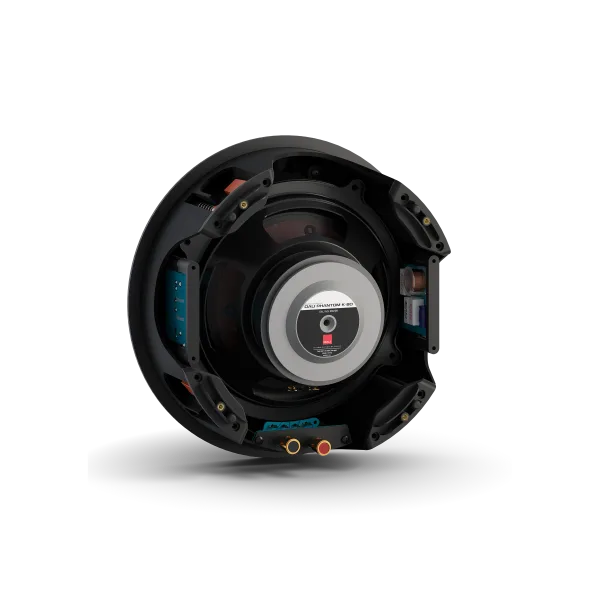

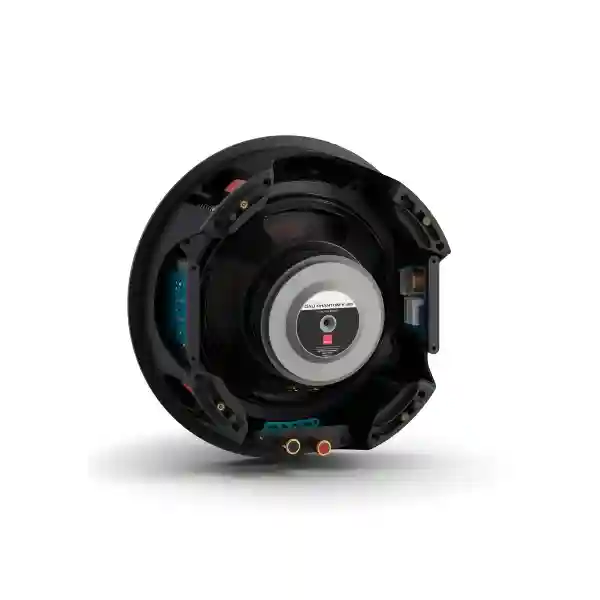

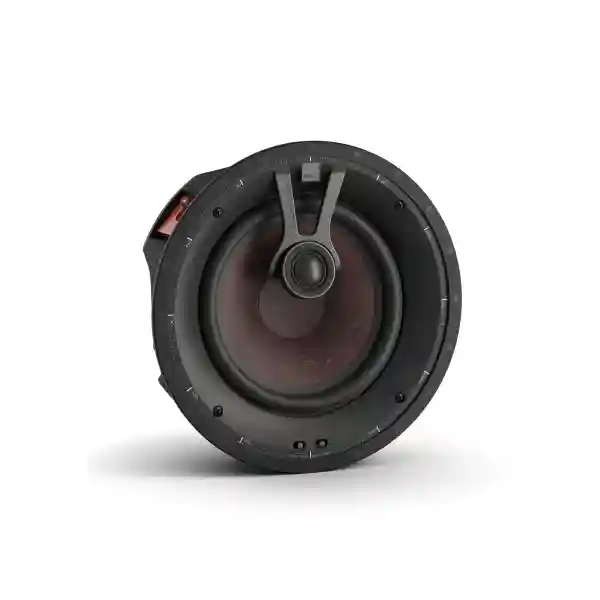

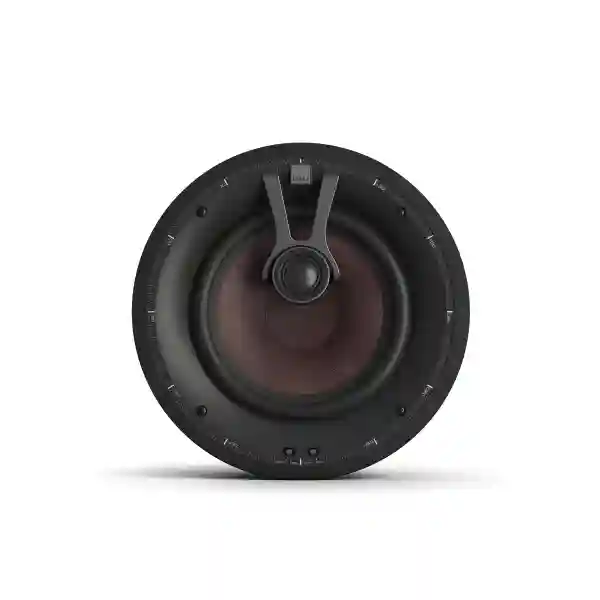

DALI PHANTOM K-80 – High-Performance In-Ceiling Speaker

The DALI PHANTOM K-80 is a premium in-ceiling speaker designed to deliver superior sound quality with an 8″ wood fibre woofer, a tiltable soft dome tweeter, and an off-axis design that ensures a balanced and natural soundstage. Whether you’re setting up a home theater, multi-room audio, or a high-fidelity listening space, the K-80 provides deep, articulate bass and a high-resolution midrange for an immersive audio experience.

Key Features

• 8″ wood fibre cone woofer for rich midrange and deep, controlled bass
• Tiltable 28mm soft dome tweeter with directional adjustment for optimized high frequencies
• Off-axis woofer placement to reduce distortion and improve phase coherence
• Enhanced bass response with a large magnet system and long excursion design
• Easy installation using a dogleg mounting system for quick and secure placement
• Discreet true-white grille for seamless integration into any ceiling
• Compatible with optional back-can for improved bass performance in reverberant spaces

Features

High-Resolution Sound with Off-Axis Woofer

The PHANTOM K-80 features a carefully engineered off-axis woofer placement that lowers coloration and distortion. This design enhances the timing and phase between the woofer and tweeter, ensuring a more even frequency response. Additionally, the closely aligned tweeter placement results in improved timing for a more natural and accurate sound.

Powerful 8″ Wood Fibre Woofer

At the heart of the K-80 is an 8″ wood fibre cone woofer with a low-loss rubber surround. This material provides excellent transient response and reproduces even the finest details in your audio. Combined with an optimized magnet system, the woofer delivers deep, articulate bass while maintaining a smooth midrange performance.

Tiltable 28mm Soft Dome Tweeter

The PHANTOM K-80 is equipped with a high-performance 28mm soft dome tweeter, mounted on a solid aluminium wishbone bracket for increased stability. The tweeter can be tilted to direct the high frequencies towards the listening area, ensuring an optimal audio experience even in challenging room layouts.

Enhanced Bass Experience

The PHANTOM K-80 produces a full-bodied bass response, thanks to its large magnet system and long-excursion woofer design. The midrange is slightly recessed to create a sense of greater bass presence, resulting in a warm and engaging sound signature. The speaker also features fine-tuning switches, allowing users to customize the sound profile to their preference.

Optional Back-Can for Optimized Performance

For rooms with high reverberation, such as bathrooms and hallways, the PHANTOM K-80 offers an optional back-can accessory. This small but precisely tuned enclosure enhances upper bass response, providing a punchier and more controlled sound. The moisture-resistant woofer cone also ensures durability in humid environments.

Easy and Secure Installation

The PHANTOM K-80 features a dogleg mounting system, allowing for quick and hassle-free installation. Simply insert the speaker into the ceiling, turn the screws to rotate the brackets, and secure the unit in place. The slim, true-white grille blends seamlessly with any ceiling, maintaining a discreet and elegant look.

Specifications

• Frequency Range: 48 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 87 dB (2.83V/1m)
• Maximum SPL: 107 dB
• Crossover Frequency: 3,300 Hz
• Recommended Amplifier Power: 50 – 200 Watts
• Nominal Impedance: 6 ohms
• Low Frequency Driver: 1 x 8″ wood fibre cone woofer
• High Frequency Driver: 1 x 28mm soft dome tweeter
• Crossover Principle: 2-way

Premium In-Ceiling Sound for Any Space

Whether you’re looking to enhance your home theater, add high-quality sound to your living space, or create a seamless whole-home audio system, the DALI PHANTOM K-80 delivers outstanding performance. Its thoughtful engineering, advanced materials, and user-friendly installation make it an excellent choice for audiophiles and interior designers alike.
