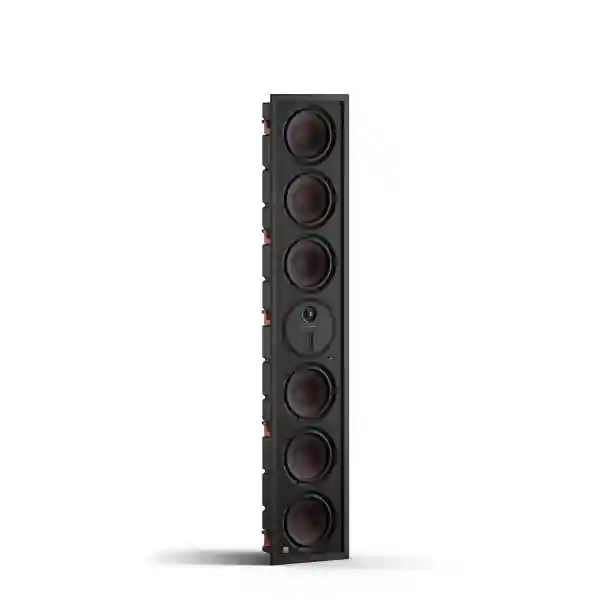

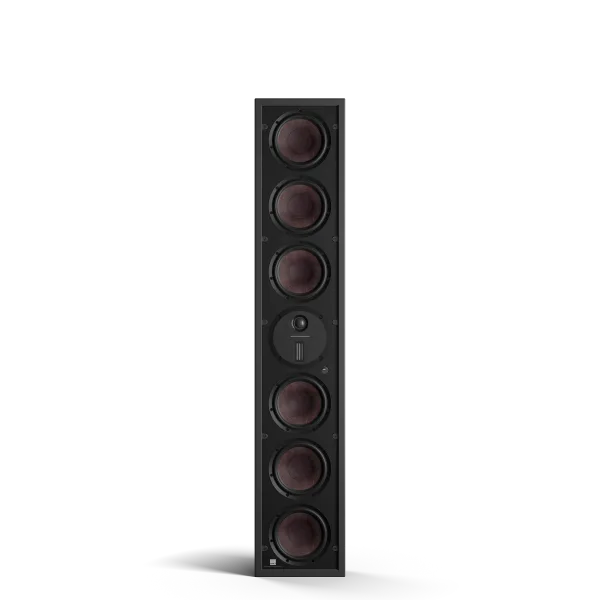

DALI PHANTOM M-675 – High-Performance In-Wall Speaker

The DALI PHANTOM M-675 is a premium, slim-profile in-wall speaker engineered for high-end home cinemas and custom Hi-Fi installations. Designed to fill larger rooms with powerful, immersive sound, it features dual 7” wood fibre woofers, four passive radiators, and DALI’s hybrid tweeter module for extended high frequencies. With a fully integrated backbox and a slim 100mm mounting depth, the M-675 offers superior sound quality while maintaining a discreet aesthetic.

Key Features

• Dual 7” wood fibre woofers for deep, controlled bass and precise midrange
• Four passive radiators enhancing low-frequency performance
• Hybrid tweeter module with a 28mm soft dome and 17x45mm planar tweeter for crisp, detailed highs
• Wide dispersion technology ensuring a broad sweet spot
• Fully enclosed backbox for easy installation without an external enclosure
• Low-profile 100mm depth for seamless wall integration
• Magnetic, paintable grille for a discreet, customizable look
• SMC (Soft Magnetic Compound) technology reducing distortion for superior clarity

Unmatched Audio Performance

Dual 7” Wood Fibre Woofers & Four Passive Radiators

The PHANTOM M-675 features two 7” wood fibre woofers with upgraded rubber surrounds and new voice coils for improved bass response and higher power handling. These are supported by four passive radiators with custom paper and wood fibre cones, adding stiffness and minimizing coloration. This design allows for deeper, more controlled bass while maintaining excellent midrange clarity.

Hybrid Tweeter Module for Extended High Frequencies

The DALI hybrid tweeter module pairs a 28mm soft dome tweeter with a 17x45mm planar tweeter, delivering smooth, natural highs with remarkable dispersion. The planar tweeter excels at horizontal high-frequency distribution, ensuring a consistent listening experience across the room. Together, they create an airy, detailed sound that complements the rich midrange and powerful bass.

Wide Dispersion for a Larger Sweet Spot

Designed for an expansive soundstage, the PHANTOM M-675 uses DALI’s Wide Dispersion technology to ensure consistent, room-filling audio. Whether placed vertically or horizontally, it delivers an even listening experience with precise imaging, making it ideal for large home cinema setups.

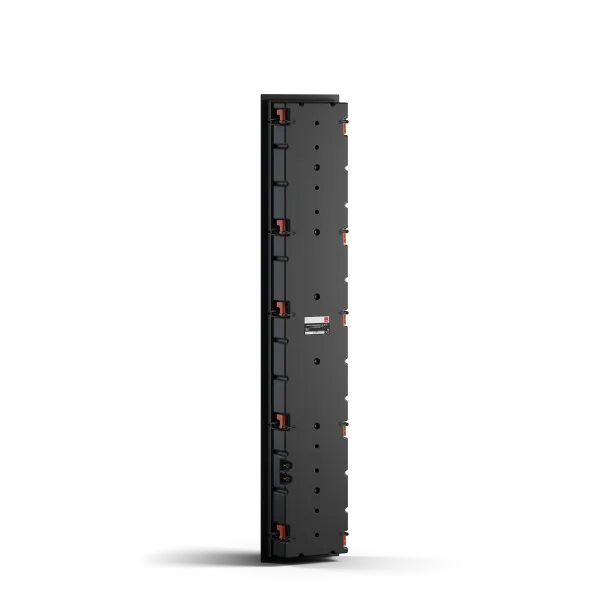

Fully Integrated Backbox for Easy Installation

The PHANTOM M-675 features a fully enclosed backbox, eliminating the need for an external enclosure. This not only simplifies installation but also ensures optimal cabinet volume for accurate bass reproduction. The six spring-loaded dogleg mounts provide a secure, rattle-free installation.

Low-Profile, Discreet Design

With a 100mm depth, the PHANTOM M-675 fits seamlessly into most standard walls, making it an excellent choice for both home theaters and Hi-Fi stereo setups. The matte-black lacquered front baffle and magnetic, paintable grille allow for an elegant, nearly invisible installation.

Advanced SMC Technology for Distortion-Free Sound

Utilizing DALI’s patented Soft Magnetic Compound (SMC), the M-675 significantly reduces mechanical distortion caused by hysteresis and eddy currents. This results in improved bass control, exceptional transient response, and a more detailed, natural sound reproduction.

Specifications

• Frequency Range: 49 – 25,000 Hz (+/- 3 dB)
• Sensitivity: 90 dB (2.83V/1m)
• Maximum SPL: 110 dB
• Crossover Frequencies: 1,000 / 2,800 / 15,000 Hz
• Recommended Amplifier Power: 40 – 300 Watts
• Nominal Impedance: 4 ohms
• Low Frequency Drivers: 2 x 7” wood fibre cones
• High Frequency Drivers: 1 x 28mm soft dome tweeter, 1 x 17 x 45mm planar tweeter
• Cabinet Depth: 100mm

The Ultimate In-Wall Speaker for High-End Audio

Combining powerful bass, detailed highs, and wide dispersion, the DALI PHANTOM M-675 is the ideal solution for high-end home cinemas and custom stereo setups. Whether used as a front, center, or surround speaker, it delivers an immersive and dynamic listening experience while maintaining a sleek, unobtrusive design.
