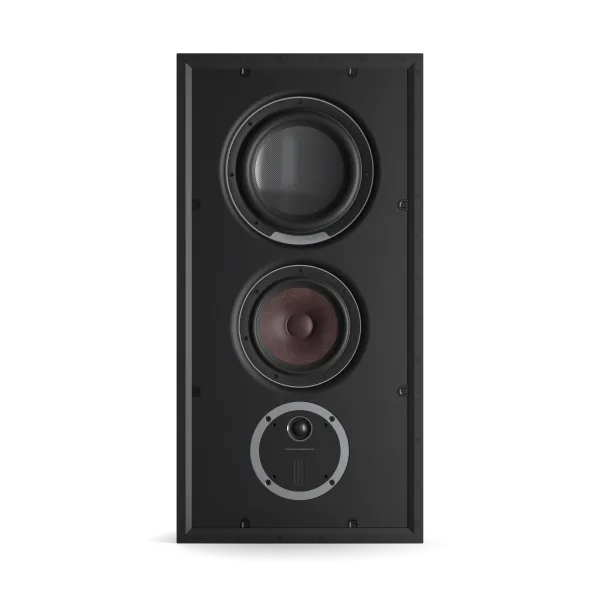

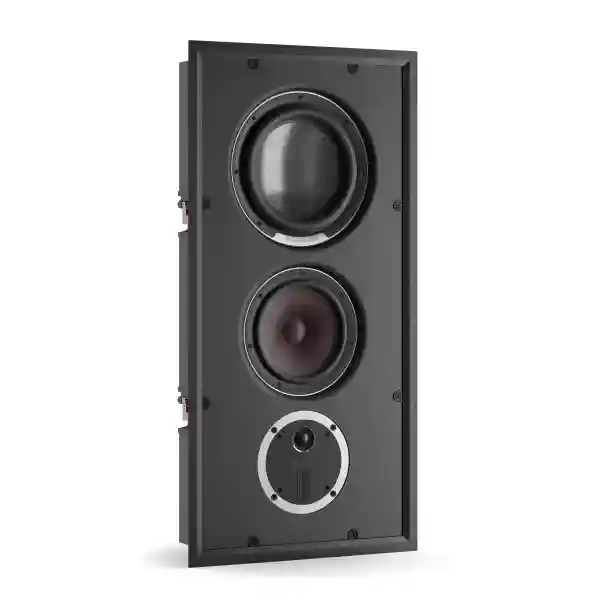

DALI PHANTOM S-180

Premium In-Wall Audio Performance

The DALI PHANTOM S-180 is a **full-size in-wall speaker** that combines an **8″ wood fibre driver**, a **10″ passive carbon fibre radiator**, and a **rotatable hybrid tweeter module** to deliver **coherent, clean, and detailed sound**. Designed to fit into most standard walls, the S-180 offers **audiophile-grade performance** in a **space-saving design**.

Key Features

• Wide Dispersion – Creates a **larger sweet spot** for immersive audio throughout the room.
• Slim Cabinet – At **100-103 mm deep**, it fits **most standard walls** while maintaining superior performance.
• Patented SMC Technology – Reduces **colouration and distortion** for pure, high-fidelity sound.
• 10″ Passive Radiator – Incorporates a **high-performance carbon fibre woofer** from the **DALI SUB P-10 DSS**.
• Rotatable Hybrid Tweeter Module – Ensures **precise sound dispersion** and **optimized performance** in any setup.
• Custom Wood Fibre Cone – Designed for **natural, detailed** midrange and **deep bass response**.

Innovative Technology for High-End Sound

The **DALI PHANTOM S-180** is engineered for **high-performance audio** with **floorstanding speaker quality** in an in-wall design. The speaker features a **solid MDF front baffle**, **low-loss rubber surrounds**, and a **hybrid tweeter module** to produce **accurate, distortion-free sound**.

Low-Profile Cabinet with Easy Installation

With a slim depth of **only 103 mm**, the **PHANTOM S-180** fits flush into **most standard walls**. The **MDF cabinet** ensures a **sturdy and resonance-free** housing for the drivers, while the **dogleg mounting system** allows for **quick and secure installation**.

Optimised Hybrid Tweeter for Perfect Dispersion

The **hybrid tweeter module** features a **28 mm soft dome tweeter** and a **high-performance planar tweeter**, delivering **exceptional high-frequency detail** with **wide dispersion**. The **tweeter can be rotated** for optimal placement, making the S-180 a perfect choice for **multi-channel home theatre setups**.

Reducing Distortion with SMC Magnet System

The **8″ primary woofer** is equipped with **DALI’s patented SMC magnet technology**, originally developed for the **high-end EPICON series**. This advanced design minimizes distortion, providing **high-fidelity bass and midrange performance** with **incredible detail**.

Superior Bass with Passive Radiator

The **PHANTOM S-180** integrates a **10″ passive bass reflex woofer**, based on the **DALI SUB P-10 DSS**. The **carbon fibre cone** and **soft surround** ensure deep, controlled bass extension, allowing the speaker to **produce powerful low-end frequencies** without an external subwoofer.

Wide Dispersion for a Larger Sweet Spot

Designed with **DALI’s wide dispersion principles**, the **PHANTOM S-180** ensures that audio remains **consistent and immersive**, even when listening **off-axis**. This feature is especially important for in-wall speakers, ensuring **superior sound coverage** throughout the room.

Technical Specifications

• Frequency Response: 49 – 25,000 Hz
• Maximum SPL: 109 dB
• Nominal Impedance: 6 ohms
• Recommended Amp Power: 40 – 200 Watts
• Crossover Frequencies: 2,800 / 15,000 Hz
• High-Frequency Drivers: 1 x 28 mm soft dome, 1 x 17 x 45 mm planar
• Low-Frequency Driver: 1 x 8″ Wood Fibre Cone
• Sensitivity: 89 dB (2.83V/1m)
