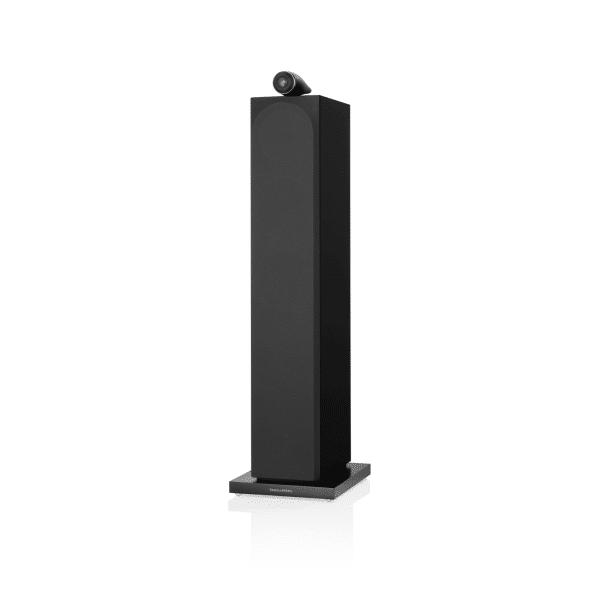

703 S3

765,000.00

The new 703 S3 now features our iconic Tweeter-on-Top configuration for the first time, alongside a decoupled FST™ Continuum cone midrange driver – enhanced by the addition of our revolutionary new Biomimetic Suspension – and twin Aerofoil Profile bass drivers.

Specifications

  • Size & weight

    Dimensions Height: 1010mm (39.8 in) cabinet only
    1117mm (44.0 in) including tweeter and plinth
    Width: 192mm (7.6 in) cabinet only
    290mm (11.4 in) including plinth
    Depth: 316mm (12.4 in) cabinet only
    353mm (13.9 in) including grille and terminals
    372mm (14.6 in) including plinth
    Net weight 28.81kg (63.5 lb)

    Technical details

    Technical features Decoupled Carbon Dome tweeter
    Solid Body Tweeter-on-Top
    Continuum™ cone FST™ midrange
    Decoupled midrange
    Aerofoil™ Profile bass cones
    Flowport™
    Max recommended cable impedance 0.1Ω
    Description 3-way vented-box system
    Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
    1x ø150mm (6 in) Continuum cone FST midrange
    2x ø165mm (6.5 in) Aerofoil Profile bass
    Frequency range 30Hz to 33kHz
    Frequency response 46Hz – 28kHz ±3dB
    Sensitivity 90dB spl (2.83Vrms, 1m)
    Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
    <1% 90Hz – 22kHz
    <0.5% 120Hz – 20kHz
    Nominal impedance 8Ω (minimum 3.1Ω)
    Recommended amplifier power 30W – 200W into 8Ω on unclipped programme

    Finishes

    Cabinet finishes Gloss Black
    Satin White

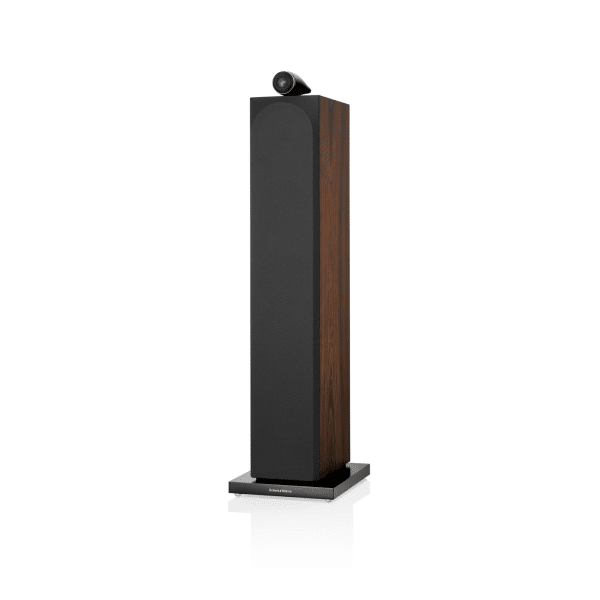

    Mocha
    Grille finishes Black
    Grey (Satin White only)
