AE105 Wall Mount (each)

41,322.00

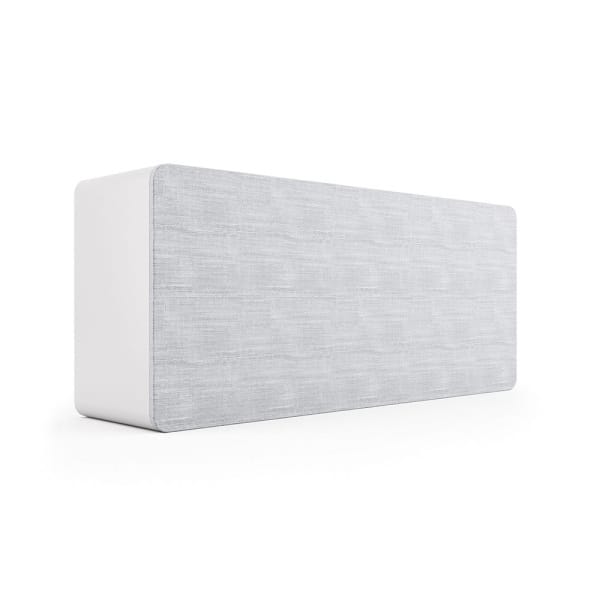

The AE105 is the latest addition to the all-new 100 Series. A versatile, 2-way loudspeaker primarily designed for wall mounting, the AE105 is equally suited to a bookcase or shelf position.

Finish – Satin Black, NEW: Satin White (Limited Edition),Walnut vinyl veneer

The AE105 is the latest addition to the all-new 100 Series. A versatile, 2-way loudspeaker primarily designed for wall mounting, the AE105 is equally suited to a bookcase or shelf position.

The AE105 utilises a soft dome tweeter with WDT wave guide along with two 130mm paper cone drivers, one acting as a passive radiator for improved bass performance. Optimised for vertical wall mounting with the listening position at or below the tweeter axis, the AE105 can be used to simply enhance the stereo sound from your TV, or as Front L/R, Centre and Surround channel speakers within multi-channel home cinema systems? whilst partnered with the matching AE108? compact sub-woofer.

Finished in a choice of black, white or walnut vinyl veneers, they are supplied with rear mounting plates, template, wall spacers, black and light grey grilles for easy integration within any room d?cor.

TECHNICAL INFORMATION

TWEETER

Acoustic Energy?s bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.

DRIVERS

The 130mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.

CABINET

The 100 Series uses thin, 15mm high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109? and AE120? feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.

SPECIFICATIONS
AE105
Drive Unit: 130mm paper cones (one passive)
Tweeter: 25mm fabric dome
Frequency Range: 35Hz ? 26kHz
Sensitivity: 91dB
Peak SPL: ?
Power Handling: 120w
Crossover Frequency: 3kHz
Impedance: 6ohms
Design: 2-way
Grilles: Slim, cloth magnetic fit (black and light grey)
Dimensions (mm): 450 x 200 x 120 (HxWxD)
Weight: 4.7kg (each)
Finishes: Black, Satin White and Walnut vinyl veneer

Brand

Acoustic Energy

Variant

AE100 SERIES

Product Type

On Wall Speaker
