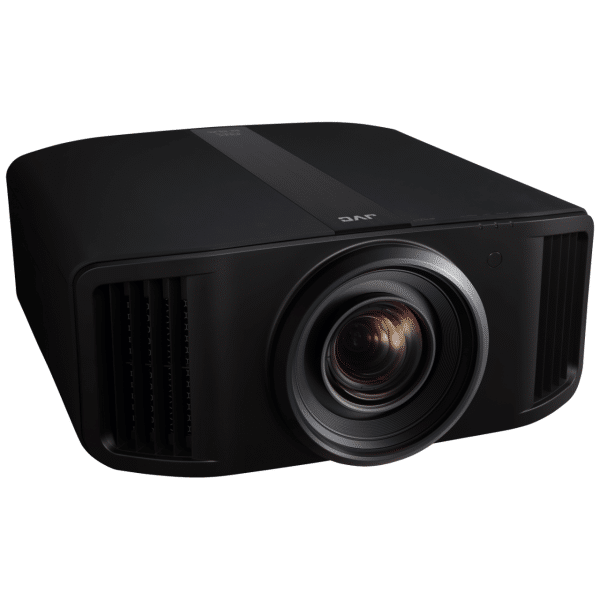

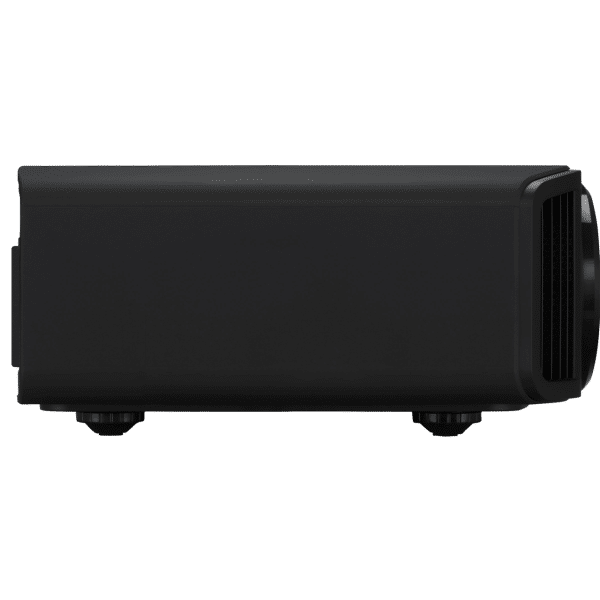

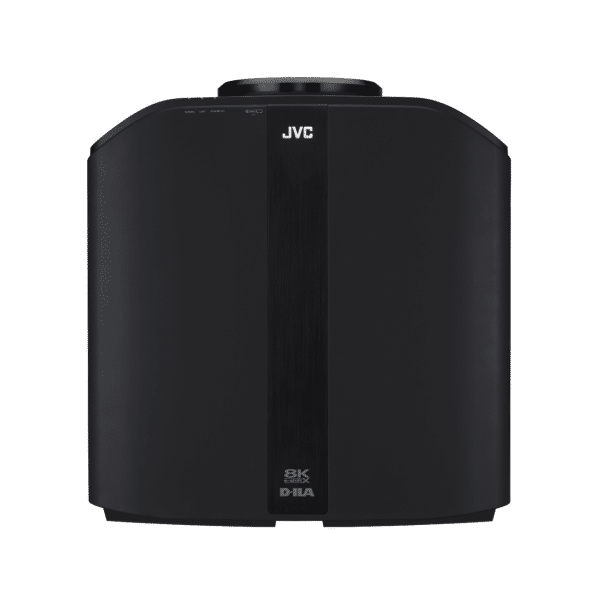

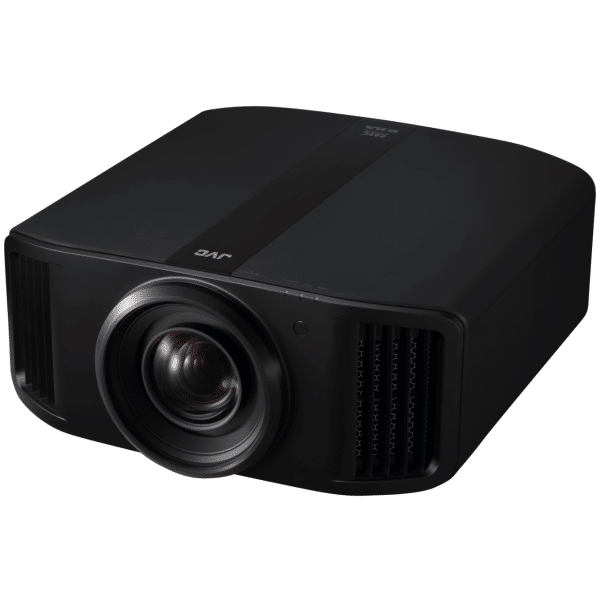

JVC DLA-NZ9B
₹2,499,900.00
Device 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3 e-shift 8K/e-shiftX (4-direction shift)
Display Resolution 8192 x 4320
Lens – Type x2 Motorised Zoom & Focus, All-glass Lens Dia – 100mm
Projection Display Size (diagonal) 60 inch – 300 inch Light Source – BLU-Escent Laser Diode
Brightness – 3,000 lm Theatre Optimizer
Glass lens with full aluminium lens barrel
The DLA-NZ9 D-ILA projector is the world first (as of September 2021, according to a research by JVCKENWOOD) home theater model to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shiftX proprietary technology with 4-direction shift to reproduce 8K-quality image from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, high-quality 18-element, 16-group 100 mm glass lens with a full aluminum lens barrel, and Ultra-High Contrast Optics that contribute to deliver optical brightness of 3,000 lumens. BLU-Escent laser diode light source also contributes to project the high-resolution 8K image with full depth and dimensionality with longevity of up to 20,000 hours. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models and DLA-NZ9 is the high-end model.
- Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life
- Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
- 18-element, 16-group all-glass 100mm diameter high-quality lens
- BLU-Escent Laser Light Source
- New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
- Newly developed 8K/e-shiftX technology reproduces 8K image quality
- High brightness of 3,000 lm provides vibrant and dynamic images
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of ? :1
- New Theater Optimizer** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
- HDR10+ contains the metadata of the producer?s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
Technical Specifications
Product Support
Device
- D-ILA Technology
- Yes
- Chip Type
- 0.69-inch 4K D-ILA device
- Native Resolution
- 4096 x 2160
- Number Of Chips
- 3
- 8K/e-shiftX
- Yes
- Display Resolution
- 8192 x 4320
Light Source
- Laser
- Yes
- Type
- BLU-Escent Laser Diode
- Life Time (Standard Mode)
- 20000 hours
- Brightness
- 3000 lm
- Dynamic Contrast
- ? : 1
- Native Contrast
- 100000 : 1
- Dynamic Light Power control
- Yes
- Modes
- Mode 1 (gentle), Mode 2 (strong), Off
- Manual Aperture
- Yes
- Range
- -15 (stops down) to 0 (opens up)
- DCI-P3 Color Gamut
- Yes
- 100% REC 709
- Yes
- Color Bit Depth
- 12 bit
- ISFccc Certification
- Yes
HDR
- HDR10
- Yes
- HDR10+
- Yes
- Frame Adapt HDR
- Yes
- Theatre Optimizer
- Yes
- HLG
- Yes
- Auto Tone Mapping
- Yes
- Mastering Info Display
- Yes
- Info data
- MaxCLL and MaxFALL mastering data
- HDR Picture Modes
- BT.709 / BT.2020 / DCI / HDR
Lens
- Zoom
- 2 x
- Throw Ratio
- 1.35-2.75:1
- Diameter
- 100 mm
- Material
- All-glass
- Build
- 18-element, 16-group in full aluminium lens barrel.
- Lens Shift
- Yes
- Range Horizontal
- ? 43 %
- Range Vertical
- ? 100 %
- Motorized Zoom
- Yes
- Motorized Shift
- Yes
- Motorized Focus
- Yes
- Projection Display size (diagonal)
- 60 – 300 inch
- Memory Function
- Yes
- Number of user presets
- 10
- Lens Cover
- Yes
HDMI
- Number of connections
- 2
- Data Rate
- 48 Gbps
- HDCP Version
- 2.3
- 8K60P signal input
- Yes
- 4K120p signal input
- Yes
- 4K60P signal input
- Yes
- Video Signal range
- 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
- PC Signal range
- VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
- Input Level Adjustment
- Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Color Space Range
- Auto/ YCbCr4444 / YCbCr422 / RGB
- EDID Modes
- A and B (older hardware may need to use B settings)

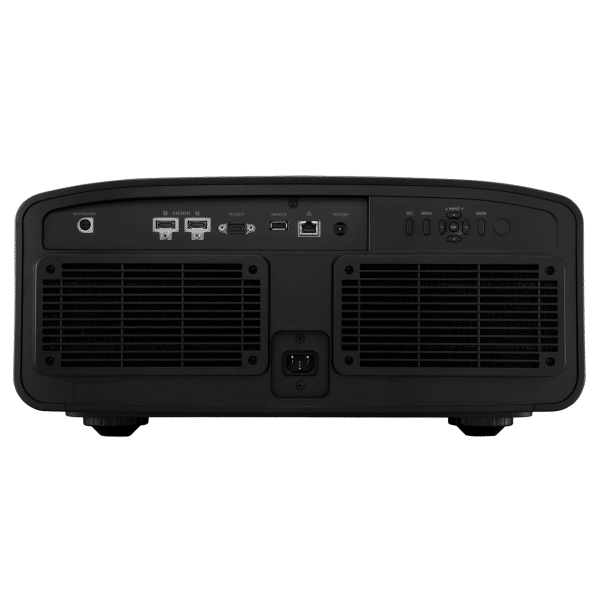

Connections
- Trigger out
- Yes
- Connector
- Mini-Jack (3,5mm)
- Power
- DC 12V / 100mA
- 3D Synchro
- Yes
- Connector
- Mini DIN 3-pin
- LAN
- Yes
- Connector
- RJ45
- RS-232
- Yes
- Connector
- D-sub 9-pin
- Service
- Yes
- Connector
- USB (Type A) for firmware update.
3D
- 3D Capability
- Yes
- 3D Versions
- Frame Packing, Side-by-Side, Top & Bottom
- Frame Packing Resolutions
- 720p 60/50, 1080p 24
- Side-by-Side Resolutions
- 720p 60/50, 1080p 60/50/24, 1080i 60/50
- Top & Bottom Resolution
- 720p 60/50, 1080p/24
- 3D Emitter (Optional)
- Yes, PK-EM2
- 3D Glasses (Optional)
- Yes, PK-AG3
Picture Settings
- Picture Modes
- Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
- Color Temperatures
- Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth
- 12 bit
- Gamma Adjust
- HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
- Color Management
- 6-Axis adjustable CMS
- MPC
- Yes
- Low Latency Mode
- Yes
- Clear Motion Drive
- Yes
- Motion Enhance
- Yes
- Auto Calibration
- Yes
- Optional Probe needed
- Yes
- Installation Mode
- Yes
- Number of presets
- 10
- Included settings
- Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect
- Anamorphic Modes
- 4 Modes (A, B, C, D)
- Control4 SDDP
- Yes
Power & Environment
- Power Requirement
- AC100-240V, 50/60Hz
- Projector in Use
- 440W
- Standby
- Eco Mode 0.20W
- Network Standby
- 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
- Switchover time
- Approx. 15 min. (To standby or networked standby; default)
- Fan Noise
- 24 dB
- Eco Mode
- Yes
- Standby Timer
- Yes
- Operating Temperature
- 5?C to 35?C
- Operating Humidity
- 20% to 80%
- Installation Angle
- Horizontal +/- 5 degree / Vertical +/- 10 degree
- Installation Height
- Below 2,000 m
In the box
- Remote Control
- Yes, RM-MH27
- User Manual
- Yes
- Power Cord
- Yes
- Batteries
- Yes, 2 x AAA-size batteries
General Editing Note
- General Note:
- Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
| Brand | |
|---|---|
| Product Type |
JVC's new laser NZ series projectors (except for the DLA-NP5) feature the latest proprietary blue laser diode light source BLU-Escent. The technology featured in JVC professional projectors, which are often chosen for simulator applications, has been adopted for home theater projectors, realising brightness of 3,000 lumens*1 and longevity of 20,000 hours*2. With the increased brightness, these projectors ensure compatibility with large screen size. What's more, peak brightness while projecting HDR sources has improved, creating an overwhelming sense of dynamic range and an opportunity to utilize 8K high definition of greater depth and dimensionality in a way that has never been experienced before on home theater projectors. Combining the latest developed Blu-Escent package with the D-ILA device, which has high light utilization efficiency and a narrow gap between pixels, these projectors enable detailed, smooth, powerful video expression.
