Fill the room with bass, not speakers

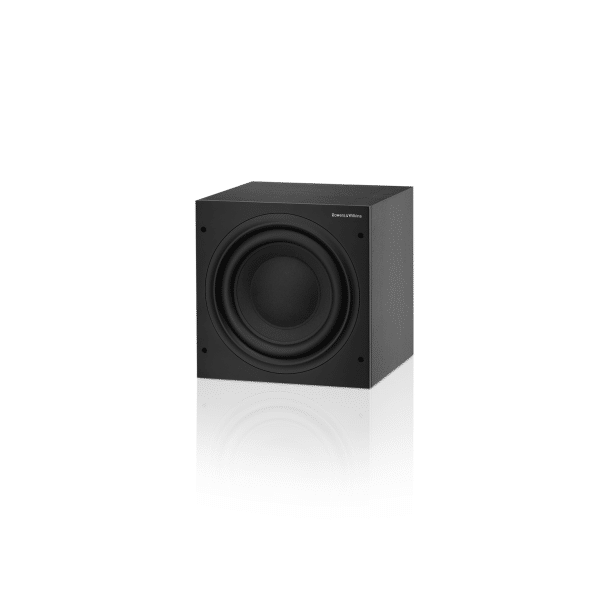

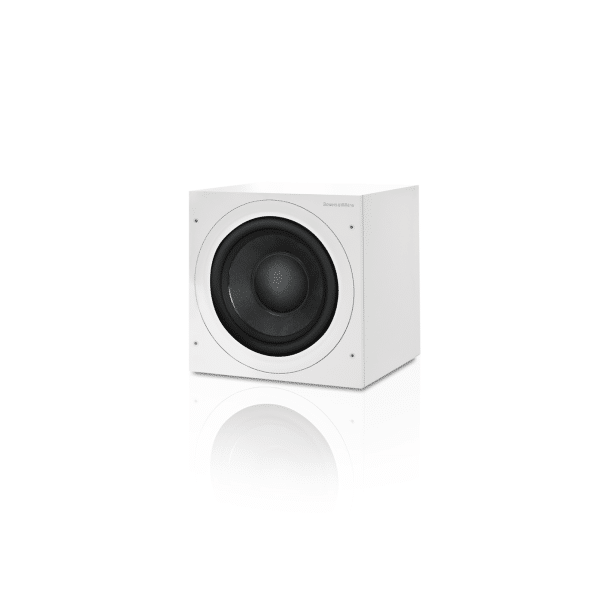

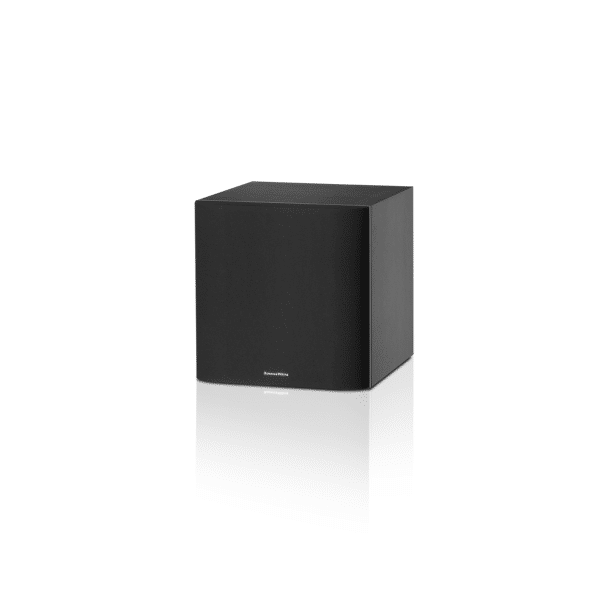

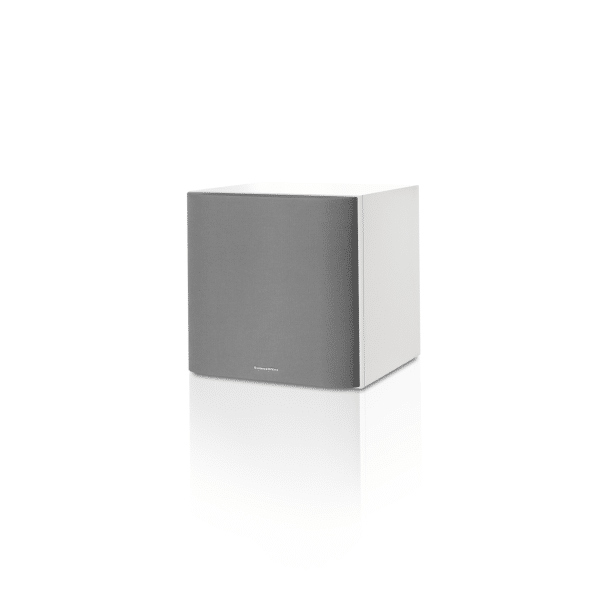

ASW610 is compact, making it a subwoofer you can squeeze in anywhere. Or maybe use two for more bass control?
Sealed tight
ASW610’s sealed enclosure keeps the bass good and tight (and exciting!).
Specifications
Size & weight
Dimensions Height: 310mm (12.2 in) not including feet or spikes
322mm (12.7in) including feet
338mm (13.3in) including spikes
Width: 310mm (12.2 in)
Depth: 347mm (13.66in) not including grilles
375mm (14.8 in) including grilles and controlsNet weight 12.5kg (27.6 lb) Technical details
Technical features Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switchDescription Active closed-box subwoofer system Drive units ø250mm (10 in) Paper / Aramid fibre cone long-throw Frequency range -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) Frequency response ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) Bass extension -6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)Amplifier power output 200W Power consumption 40W / 0.5W standby Input impedance 33kΩ Signal / Noise >90dB Inputs Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequencyFinishes
Cabinet finishes Black
WhiteGrille finishes Black
Grey
