Stage 260CSA

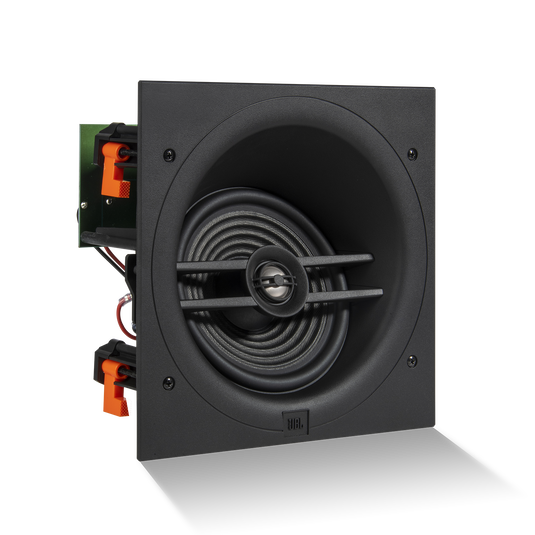

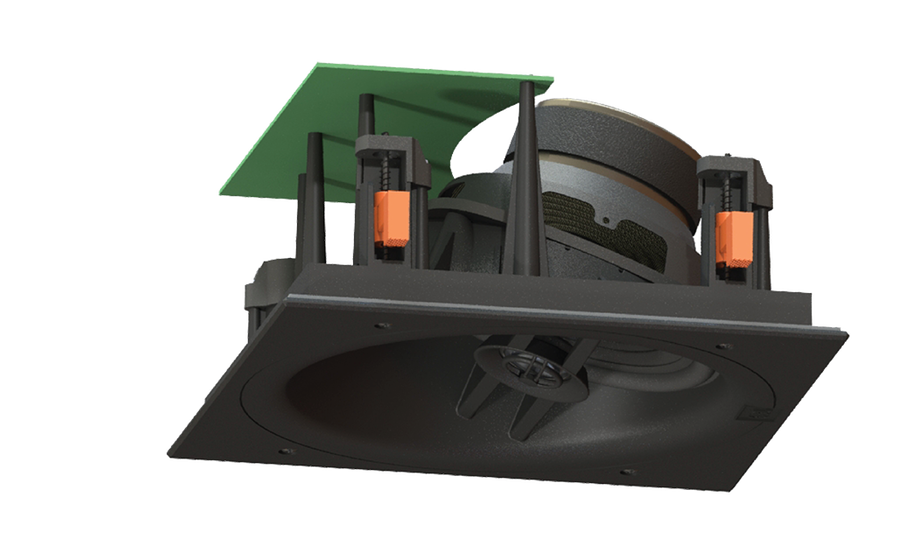

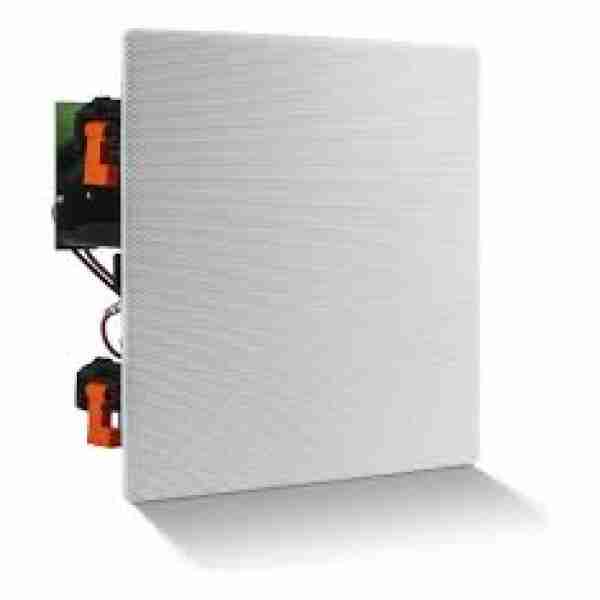

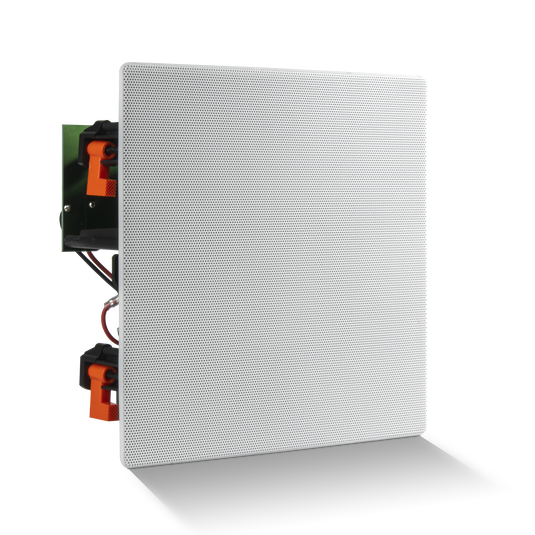

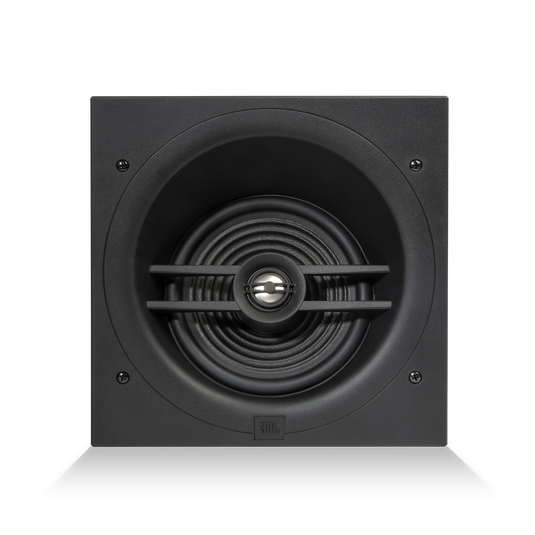

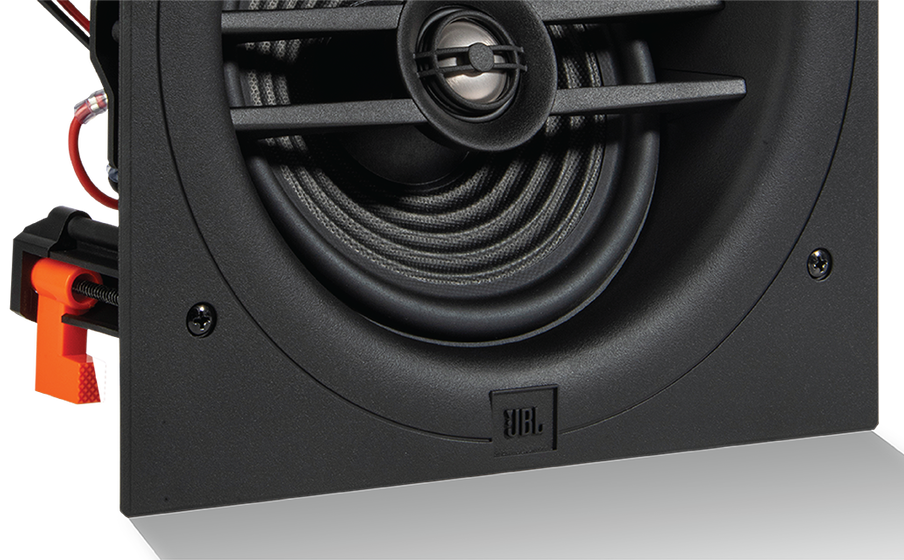

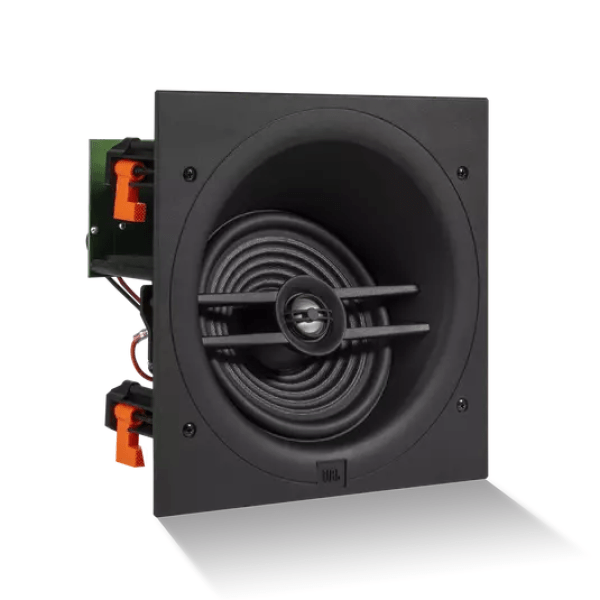

The angled design of the Stage 260CSA allows for accurate aiming of the 6.5″ (165mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with acoustic lens waveguide towards the listening area. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
- High Frequency Transducer
- 1″ (25mm) Aluminum dome with Acoustic Lens
- Low Frequency Transducer
- 6.5″ (165mm) Polycellulose cone woofer
- Recommended Amplifier Power (Full Range)
- 20-100W RMS
- Frequency Response
- 50Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m)
- 87dB
- Nominal Impedance
- 8ohm
- Crossover Frequency
- 2800Hz
- Inputs
- Nickel-plated spring-loaded connectors
- Grille Dimensions
- H 9.8in (248mm) x W 9.8in (248mm)
- Cutout Dimensions
- H 8.6in (219mm) x W 8.6in (219mm)
- Mounting Depth
- 5in (127mm)
- Product Weight (Kg)
- 2.2Kg
- Shipping Carton Dimensions
- L 12in (306mm) x W 12in (306mm) x H 6.2in (158mm)
- Shipping Carton Weight
- 6.66lbs (3.02Kg)
