2-Way Dual 5.25-inch (130mm) In-Wall Loudspeaker
Get in touch for great deals before you place your order.
SCL-7

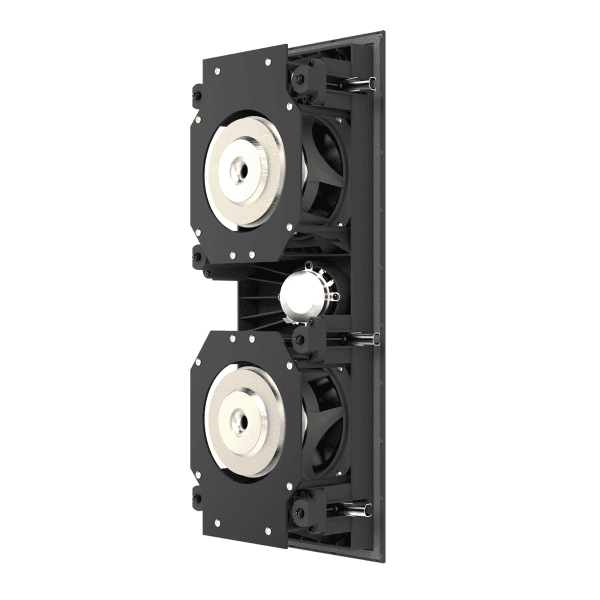

The SCL-7 is the smallest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a width or surround channel or as an LCR in smaller systems. The SCL-7 features JBL?s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI?) horn. This patented horn design is integrated with two 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 45 degrees from the listening position. The SCL-7 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.
General Specifications
Type2-Way In-wall loudspeaker
Low Frequency DriverTwo 5.25? (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
High Frequency Driver1″ (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power25 ? 150W RMS
Impedance4 Ohm
Loudspeaker Sensitivity88 dB/2.83V/1m (2pi anechoic)
Frequency Response55Hz – 30kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency2.0 kHz
High Frequency Coverage Angle (-6 dB)60? Vertical, 90? Horizontal (Left
Enclosure TypeOpen back
ControlsBoundary Proximity Control
Grille Dimensions7.32? (186 mm) x 19.15? (486 mm)
Product Dimensions (with grille)7.32? (186 mm) x 19.15? (486 mm) x 3.88? (99 mm)
Cut-out Dimensions6.18? (157 mm) x 18.03? (458 mm)
