2-Way 5.25-inch (130mm) In-Ceiling Loudspeaker
Get in touch for great deals before you place your order.
SCL-8

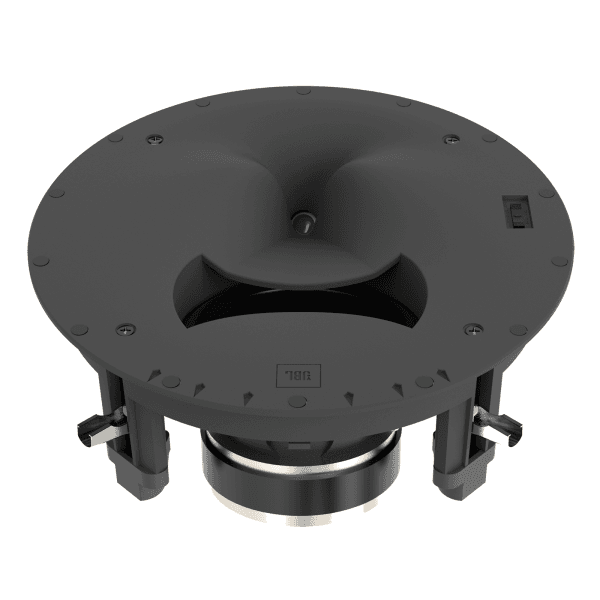

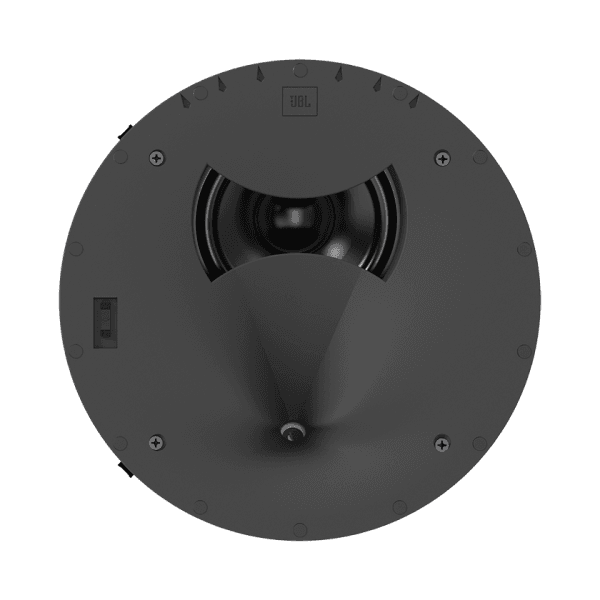

The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker. The SCL-8 features JBL?s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI?) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.
General Specifications
Type2-Way In-ceiling loudspeaker
Low Frequency Driver5.25? (130 mm) advanced Aluminum Matrix cone cast-frame woofer (JW130Al-4)
High Frequency Driver1″ (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power25 – 100 W RMS
Impedance4 Ohm
Loudspeaker Sensitivity85 dB/2.83V/1m (2pi anechoic)
Frequency Response55 Hz – 30 kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency1.8 kHz
High Frequency Coverage Angle (-6dB)60? Vertical (Up
Enclosure TypeOpen back
ControlsBoundary Proximity Control
Warranty5 Years
Shipping Units of MeasureEach
Grill Dimensions (Square)10.77? (273 mm) x 10.77? (273 mm)
Grille Dimensions (Round)10.77? (273 mm) Diameter
Product Dimensions (with grille)10.77? H x 10.77? W x 4.73? D (273 mm x 273 mm x 120 mm)
Cut-out Diameter9.72? (247 mm)
Accessory Rough-in BracketCB8
Mounting Depth4.54? (115 mm)
Input TypeGold-plated spring-loaded binding posts
Product Weight7.8 lb. (3.5 kg)
Shipping Weight10.6 lb. (4.8 kg)
