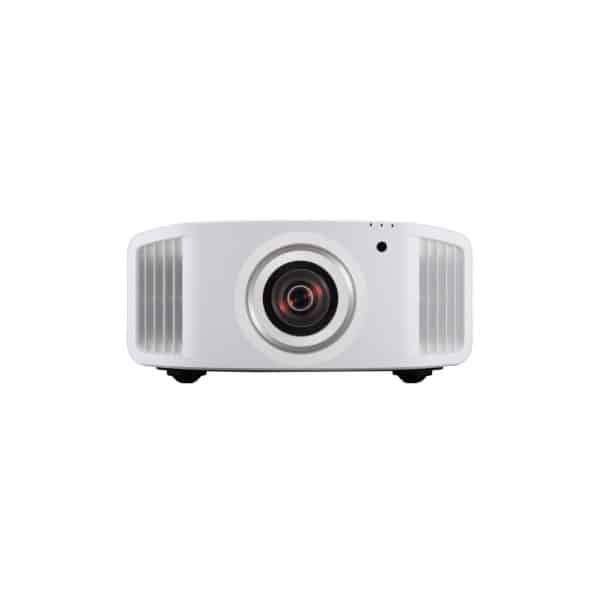

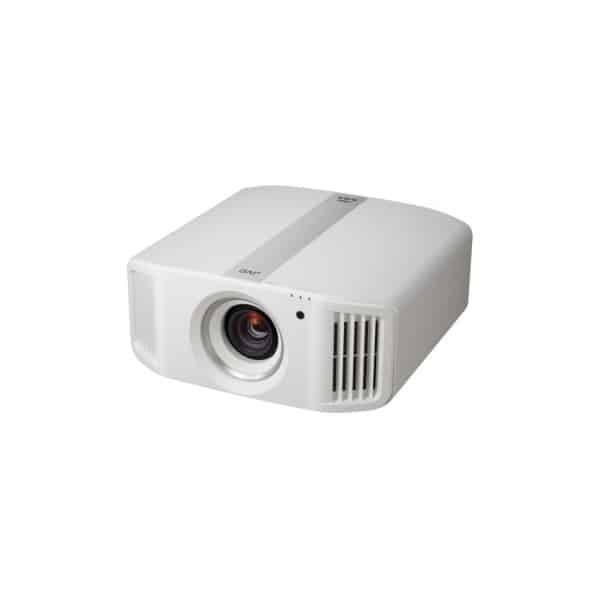

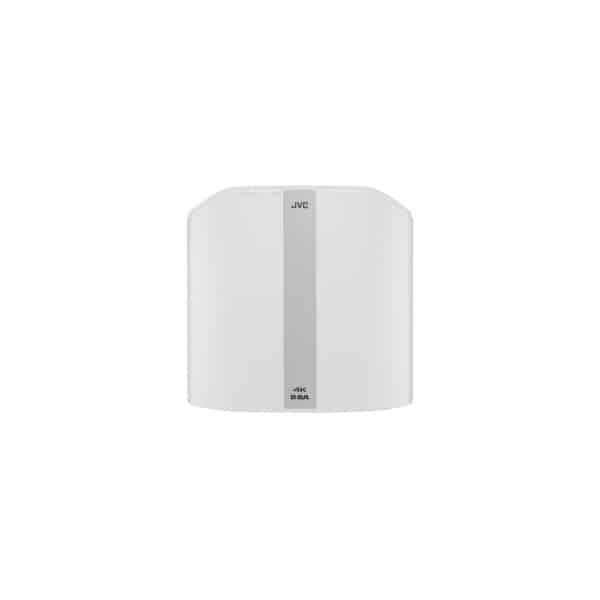

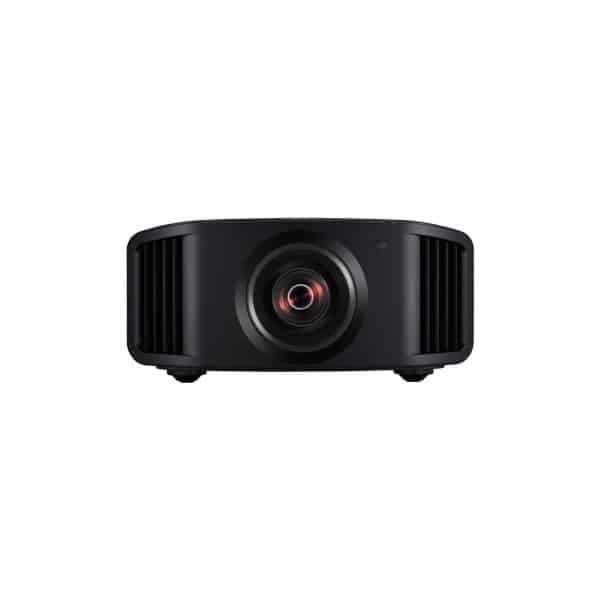

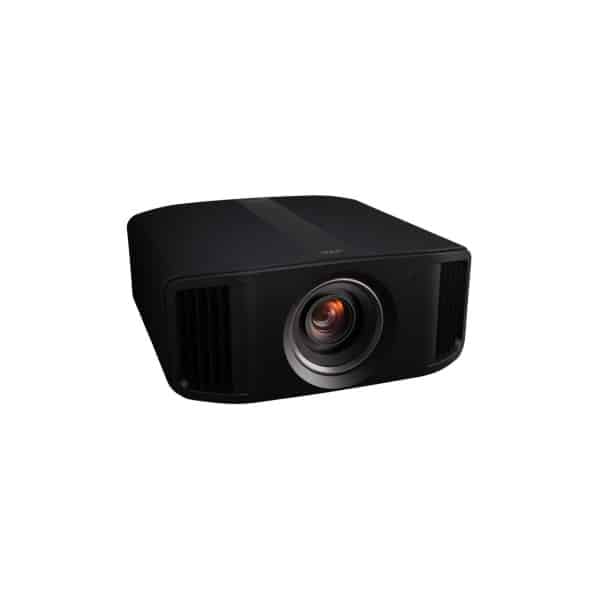

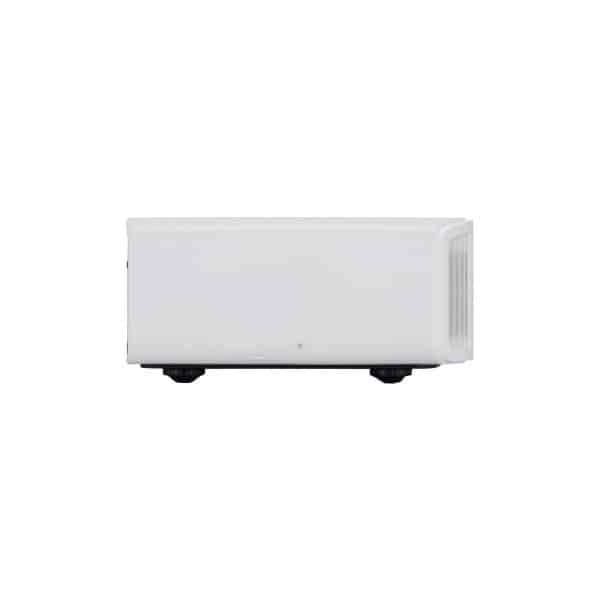

JVC DLA-NP5

749,900.00



 Device 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3 Display Resolution – 4096 x 2160
Lens – Type x2 Motorised Zoom & Focus, All-glass Lens Dia – 65mm
Projection Display Size (diagonal) – 60 inch – 200 inch Light Source – NSH 265 W
Brightness – 1,900 lm Theatre Optimizer
Glass lens with full aluminium lens barrel

The DLA-NP5 D-ILA home theater projector features a 4K120p input to reproduce full 4K-resolution (4096 x 2160 pixels) image. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, and 17-element, 15-group all glass lens with 65 mm diameter to project high-resolution images to every corner of the screen with a brightness as high as 1,900 lumens. Compatible with the latest HDR10+, HLG, and Frame Adapt HDR with Theater optimizer, the projector is designed to present industry leading HDR performance.

  • Colour Management System with 6-axis Matrix
  • Auto-Calibration Function using an optical sensor*** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
  • ISF C3 (Certified Calibration Controls) mode**** to reproduce excellent picture quality optimized for specific environments.
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
  • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • ***Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details.
  • High-definition display at 4K resolution (4096 x 2160)
  • 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 4K120P input signals
  • Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
  • **Theater Optimizer can be activated only when the projectors picture mode is set to Frame Adapt HDR.
  • Settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
  • 17-element, 15-group all-glass 65mm diameter high-quality lens
  • Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimizer
  • As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
  • New 0.69 inch 4K D-ILA (4096 x 2160) device x 3
  • Exceptionally bright 1,900 lm means bright, high-resolution images
  • Deep Blacks are realized by a High Native Contrast Ratio of 40,000:1 (Dynamic Contrast Ratio 400,000:1)
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
  • 10 Installation Modes centrally manages various settings related to installation to enjoy video best suited for each environment
  • Theater Optimizer** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
  • The projector automatically reproduces HDR10+ content based on the metadata of the producers intentions for each scene.
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
Technical Specifications
Product Support
Device
0.69-inch Native 4K DILA Device (4096×2160) x3
Resolution
4096 x 2160
Lens shift function
+/-80% vertical & +/-34% horizontal, motorised in 16:9 aspect mode

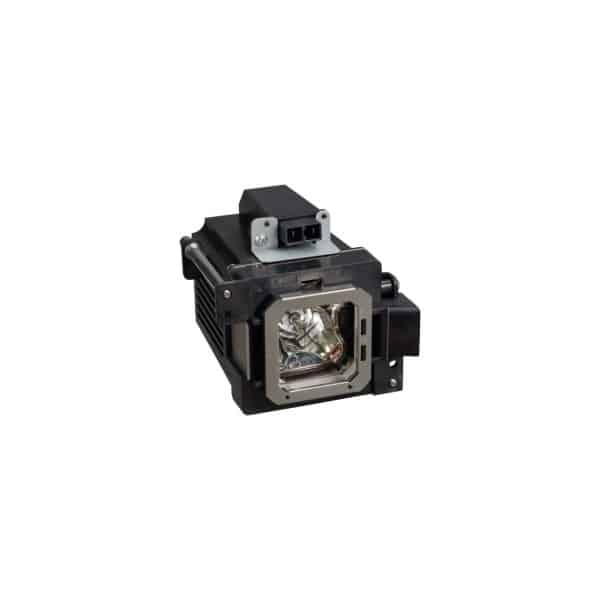

Light source lamp
NSH 265 W
Lens
All-glass lens with 65 mm diameter
Zoom
2X zoom & focus, motorised
Lamp life
Approx. 4500 hours in Low mode
Brightness
1,900 lm
Contrast Ratio
Native: 40,000:1, Dynamic: 400,000:1
Video format
Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048×1080 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24
HDMI
VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ UXGA/ WUXGA/ WQHD (60)/ WQHD (120)
HDMI
2 (48Gbps, HDCP2.3, no support for CEC)
3D sync
1 (Mini DIN 3-pin)
Trigger
1 (mini jack, DC12V/100mA)
RS232C
1 (D-sub 9-pin)
LAN
1 (RJ-45)
Service
1 (USB Type A) (for firmware update)
3D
Frame packing
720p 60/50, 1080p 24
Side-by-side
720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & bottom
720p 60/50, 1080p/24
General
Noise level
24dB (in Low Mode)
Power requirement
AC100V-240V, 50/60Hz
Projector in use
420 W
Standby
Normal: 1.5W, Eco-mode: 0.3W
Networked standby
1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C)
Switchover time
20 min. (To standby or networked standby; default)
Dimensions: W x H x D, mm
500 x 234 x 495
Weight, kg
19.2
Brand

JVC

Product Type

Native 4K Projector

JVC's new laser NZ series projectors (except for the DLA-NP5) feature the latest proprietary blue laser diode light source BLU-Escent. The technology featured in JVC professional projectors, which are often chosen for simulator applications, has been adopted for home theater projectors, realising brightness of 3,000 lumens*1 and longevity of 20,000 hours*2. With the increased brightness, these projectors ensure compatibility with large screen size. What's more, peak brightness while projecting HDR sources has improved, creating an overwhelming sense of dynamic range and an opportunity to utilize 8K high definition of greater depth and dimensionality in a way that has never been experienced before on home theater projectors. Combining the latest developed Blu-Escent package with the D-ILA device, which has high light utilization efficiency and a narrow gap between pixels, these projectors enable detailed, smooth, powerful video expression.
