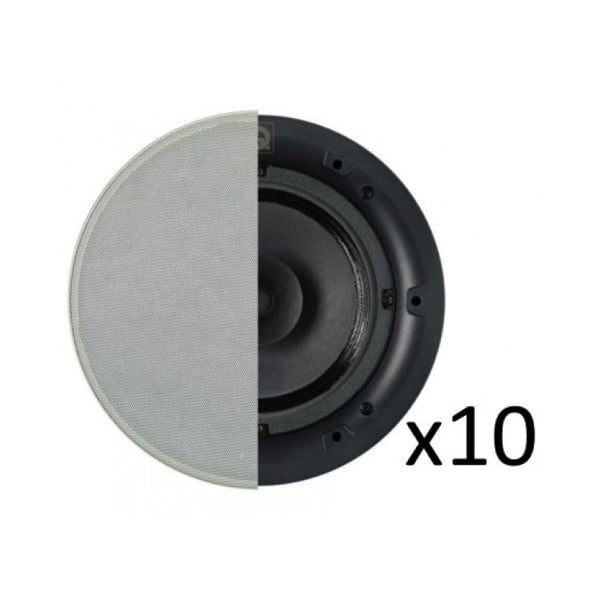

Q ACOUSTICS Q INSTALL QI65CB 6.5? PROFESSIONAL IN-CEILING BACKGROUND SPEAKER (10-PACK)
Part No. QI1105 QI 65CB Background In-Ceiling (10-Pack)
Designed to offer exceptional value.
The?Qi65CB speaker?has been designed to offer exceptional value in terms of performance and cost, its efficiency is particularly high, in fact it requires less than half the amplifier power of the standard Qi65C to produce the same volume of sound. It is also incredibly shallow making it Q Install?s slimmest speaker with a maximum rear depth of just 73 mm.
The full range driver has been carefully designed to give good bass extension a detailed mid-range for voice reproduction and an extended high frequency range without the need for a conventional crossover and tweeter arrangement.
- Moisture Proof Design
- Shallow depth requirement ? all models are less than 84 mm deep
- Q Install ceiling speakers utilize ?UL94? flame retardant materials
- Q Install speakers come carefully packaged with installation template and fitting instructions
Easy To Install
A cutter guide is supplied to mark out the hole you need to make. The speakers then attach to your ceiling via four clamps you screw from the front.
- Drive Units:
? Tweeter Sympathetic Radiator
? Tweeter Diameter 2.2?-
? Woofer Diameter 6.5?
- Cutout Size mm 203mm
- Power Handling (program) 10-50W
- Impedance (nominal) ohms 8ohm
- Sensitivity 93dB
- Response (low Freq.) -3dB 77Hz
- Maximum Rear Depth mm 73
- Size (round grilles) 232
- Low profile circular grilles
- Easy to install ?dog-leg? fixings
- Shallow depth less than 84mm
