Honey, I shrunk the Platinum!
You love the excellent sound of our award-winning and highly acclaimed Platinum series but your spouse would be furious seeing big boxes in your living room.
Here comes the solution!
The solution means no substitutions or compromises were used but just like in an old good movie: the Platinum series has just been shrunken to more compact, appealing SLIM version.
If you are seeking for an ultimate sound experience in movies and music the Platinum SLIM series is an excellent choice.
Design | Surround, 2-way 2 drivers TLIE enclosure Crossover points: 4.3kHz |
Power handling | 20 – 120W (recommended amplifier power) 90W RMS |
Frequency response | 44Hz – 40kHz |
Impedance | 6ohm |
Sensitivity | 87dB |
High-frequency driver | 25 mm (1-), TPTTD, TWG, TTP |
Bass-Midrange driver | 133 mm (5.25″), TPACD |
Features / accessories | Wall mount |
Dimensions (H x W x D) | 26 x 17 x 15 cm |
Weight | 3.95 kg / pc. |

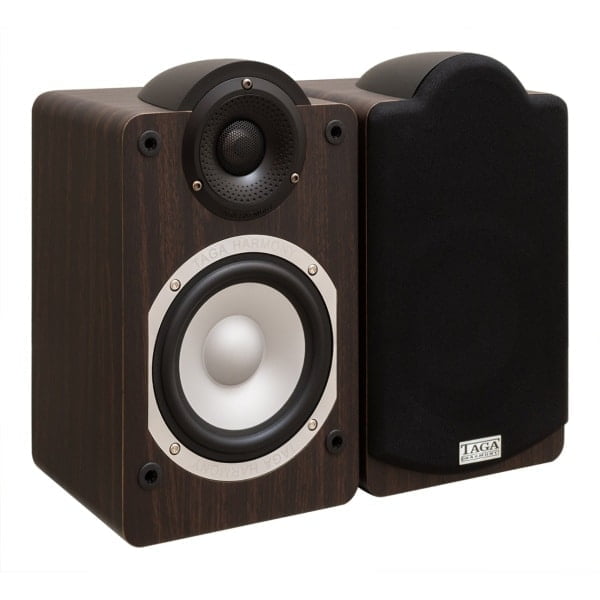

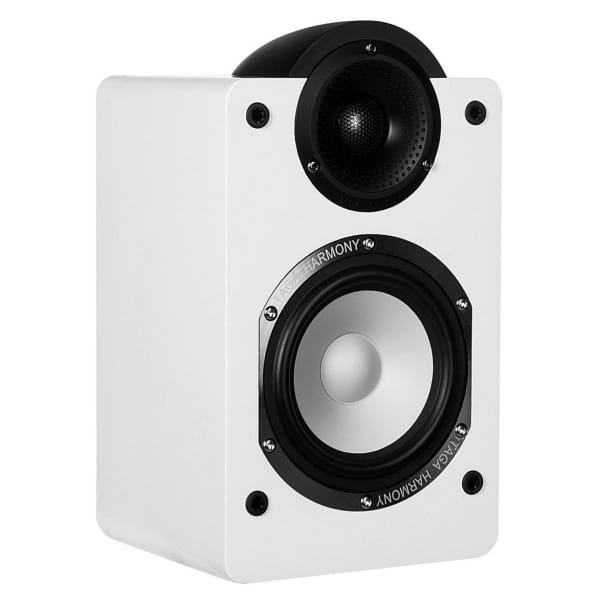

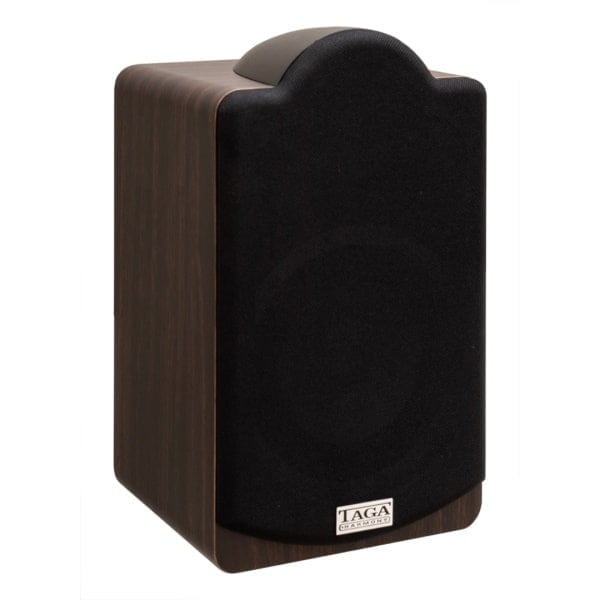

PLATINUM SLIM Series
CABINETS
TLIE –Taga Low Interference Enclosures-are made of high-quality 15mm thick MDF boards for floorstanding and the-PLATINUM-ONE–speakers (12mm for Center, Surrounds and LCR speakers) with inside braces (floorstanding models) to increase stiffness and limit any unwanted resonances.
The SLIM shapes are perfectly crafted not only to look wonderful and modern but mainly to lower any unwanted vibrations, diffractions or turbulences, which can affect the sound performance.
Acoustical damping material used inside cabinets eliminates problem of internal standing waves and bass-reflex ports are uniquely designed to reduce distortions to minimum.
High Gloss painting (selected models) – minimum 5 layers of paint plus 1 layer of the base coat.
Floorstanding models sit on solid bases with spikes that provide stability and good isolation of speakers from the floor.
HIGH-FREQUENCY DRIVER
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Copper-Clad Aluminum Wire (CCAW) voice coil -with silver wiring
5. TPTTD-Pure-titanium dome
6. Holder
8. Metal grill
7&9. TWG Front faceplate
1- (25mm)-TPTTD-Taga Pure Titanium Tweeter Dome-with oversized -70 magnet, ferrofluid cooling and heavy duty-CCAW and silver wiring-voice coil, the tweeter can bear high power and its performance is very accurate, clear, smooth and detailed.
Specialized horn-like,-TWG-TAGA Waveguide design of tweeter’s faceplate utilizing concave diffusers as well as dome metal grill assists with equal and flat dispersion of sound in and off the axis of the driver. CCAW voice coil ensures crisp, clean and distortion free communication and high power sound. Platinum tweeter can perform up to 40KHz!
TTP-Taga Top Plate (selected models only) reduces standing waves effect and creates three-dimensional performance.
PLATINUM ONE— the-TTP is rubber coated for more luxurious look and to provide even better effect on a sound performance.
MIDRANGE DRIVER-
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
7. Aluminum injection-molded chassis with anti-oxidation surface process
8.-Flat wire copper voice coil
9. Terminal
10. Spider
11. TPACD Pure aluminum cone and rubber surround
13. Silver plastic ring
14. Pure aluminum bullet shaped phase plug
Rigid and ultra-light-TPACD–Taga Pure-Aluminum cone Driver (with aluminum bullet shaped phase plug and chassis, oversized–90 magnet) with the butyl suspension can move very fast and frequently allowing mid-range frequencies to be very rich, spacious and sweet. Heavy duty combo T-yoke, pure-copper-voice coil can stand high temperatures and power inputs.-The still, bullet shaped phase plug is to align the phase of the audio signal and to smooth the midrange frequency response.
BASS-MIDRANGE DRIVER-/-BASS DRIVER-(except of F-60 SL & LCR-60 SL & Platinum ONE)
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
7. Aluminum injection-molded chassis with anti-oxidation surface process
8.-Flat wire copper voice coil
9. Terminal
10. Spider
11. TPACD Pure aluminum cone and rubber surround
12. Pure aluminum dust cap
F-60 SL & LCR-60 SL
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Aluminum injection-molded chassis with anti-oxidation surface process
6. Spider
7.-Flat wire copper voice coil
8. TPACD Pure aluminum cone and rubber surround
9. Pure aluminum dust cap
TPACD Taga Pure Aluminum cone Driver – (aluminum dust caps and chassis, oversized -100 magnet) and heavy duty combo T-yoke, pure copper voice coil, all of which allow for a high power handling as well as deep, precise and detailed bass performance (and detailed, rich and spacious midrange frequencies in mid-woofers models).
PLATINUM ONE
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. TPAIC Aluminum injection-molded chassis with anti-oxidation surface process
6. Spider
7.-Flat wire copper voice coil
8. Paper cone with rubber surround
9. Pure aluminum dust cap
The Platinum ONE mid-woofer with-TPAIC-Taga Pure Aluminum Injection-molded Chassis, oversized-magnet (-90) and heavy duty voice coil and coil former with pure copper wiring is responsible for high power handling as well as deep, precise and detailed bass-and detailed, rich and spacious midrange frequencies.
TAVS-Taga Air Ventilation System helps dispersing internal heat to provide even higher long-term power handling.
PASSIVE RADIATOR-(F-90 SL only)
1. Rear cover
2. Aluminum injection-molded chassis with anti-oxidation-surface-process
3. 85g steel-piece
4. Spider
5. Pure aluminum cone and rubber surround
6. Pure aluminum dust cap
TPAPR-Taga Pure-Aluminum Passive Radiator-(pure aluminum cone, dust cap and chassis). Very light cone and elastic rubber suspension allow fast and accurate movement of the cone by an internal air pressure produced by bass active drivers. Extra 85g steel load is added to increase a damping factor.
BASSREFLEX
BOM-Bassreflex Omnidirectional Module -low-turbulence and high-velocity ports utilizing concave diffusers for increased dispersion of low frequencies.
PLATINUM ONE— the port is rubber coated for more luxurious look and to provide even better effect on a sound performance.
CROSSOVERS
High quality, close-tolerance and precisely selected crossovers- components and internal wires for absolute sound neutrality, high long-term power and reliability.
INTERNAL WIRING
TAGA Harmony utilizes high purity oxygen free copper OFC for internal wiring connecting crossovers with drivers assuring that incoming audio signals from receiver or amplifier will not lose any important details on the paths to drivers.
PLATINUM ONE— utilizes wiring is the same like used in the higher high-end series.
BINDING POSTS
All speakers (including center and surround speakers) use high quality, gold-platted banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors.
The front speakers use upgraded, high-end banana binding posts allowing bi-wiring for wider dispersions and spaciousness, higher sonic accuracy and more precise location.
PLATINUM ONE-– utilizes the same kind of binding post like used in the higher high-end series and the terminal box is rubber coated for more luxurious look.
