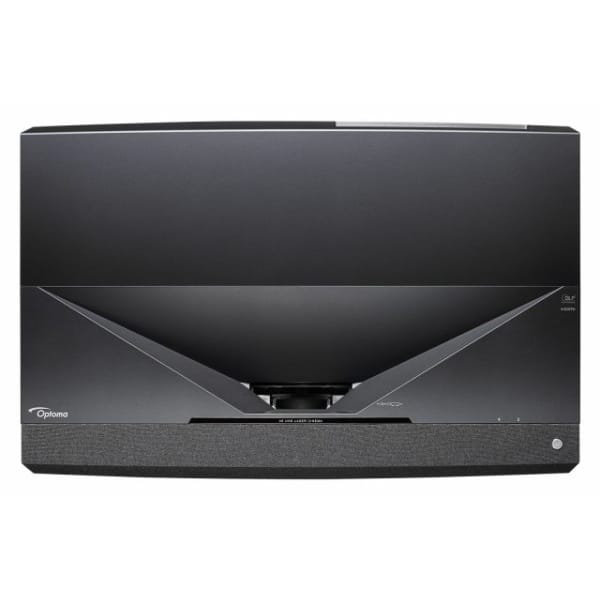

CinemaX D2


Display Technology DLP 4K UHD chip
Native Resolution 4K UHD (3840 ? 2160)
Brightness 3,000 Lumens
Contrast 1,800,000:1
Light Source Laser
Light Source Life 30,000 hours (Eco mode)
Throw Ratio 0.25:1
Zoom Type Fixed
Keystone Correction ?10? Vertical, ?10? Horizontal
I/O Connectors HDMI 2.0 x 3 (HDMI1 support eARC out, Lower latency), USB-A x1 (5V/1.5A Power, service), S/PDIFx1, RS232x1, Audio Out x1
Speaker (Watts) 10W x 2
Weight (Kg) 8.4
Dimensions (W x D x H) (mm) 576 x 383 x 115 mm (w/o feet), 576 x 383 x 130 mm (w/ feet)
Aspect Ratio 16:9
Projection Screen Size 85″ ? 120″
Projection Lens F# 2.04; f 525mm
Uniformity 90%
Horizontal Scan Rate 31~135KHz
Vertical Scan Rate 24~120 Hz
Displayable Colors 1073.4 million colors (10 bit)
Noise Level 26dB (Eco mode)
Power Supply 100V ~ 240V ? 10%, 50-60Hz
Power Consumption Power Consumption (Min) @110V 144.5W, Power Consumption (Max) @110V 241.5W, Power Consumption (Min) @220V 140.25W, Power Consumption (Max) @220V 230W
RoHS Compliant

Product Type

4K UHD No.1 4K UHD brand worldwide† Optoma’s 4K UHD professional projectors blend superior image processing technologies with exceptional engineering, delivering bright, crystal-clear images for a wide range of applications including; museums, entertainment venues and corporate spaces.
SKU: CinemaXD2 Categories: , ,
