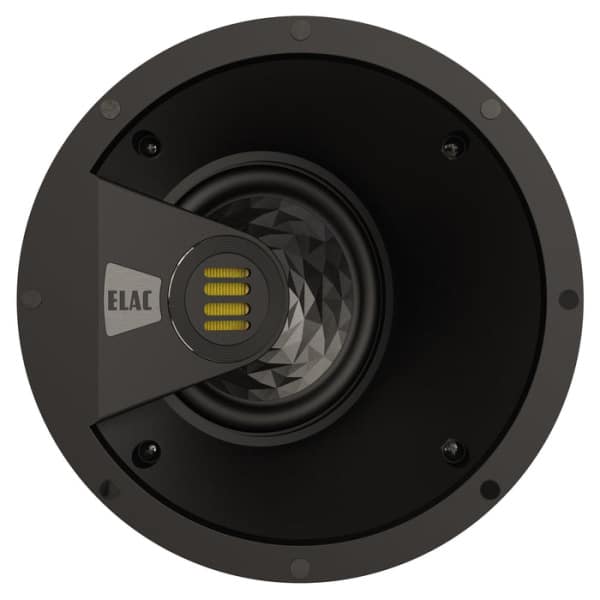

Vertex Series 3 IC-VJT63-W

The ELAC IC-VJT63 is high end full range speaker designed for theaters. The 30 degree angled woofer and tweeter enable you to install this in the ceiling and direct the sound where you need it. Featuring a paintable, white grill

These speakers are sold as EA.

JET Folded Air-Motion-Transformer and Deep Spheroid Waveguide

Delivering true high-definition sound, ELACs JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion and lots of headroom. A Deep Spheroid Waveguide is used to improve directivity control and efficiency.

Custom-designed Crystal Membrane Aluminum Woofer

ELACs unique Crystal Membrane woofer is extremely rigid, yet light weight. This woofer is specifically designed to keep up with the speed of the JET Tweeter while delivering detail in low frequency response.

Intricate Crossover

The combined performance of the speakers demands a more complex crossover so that the speakers maintain their audiophile legacy. Audio-grade components are used so that there is no compromise in performance.

Slim Profile

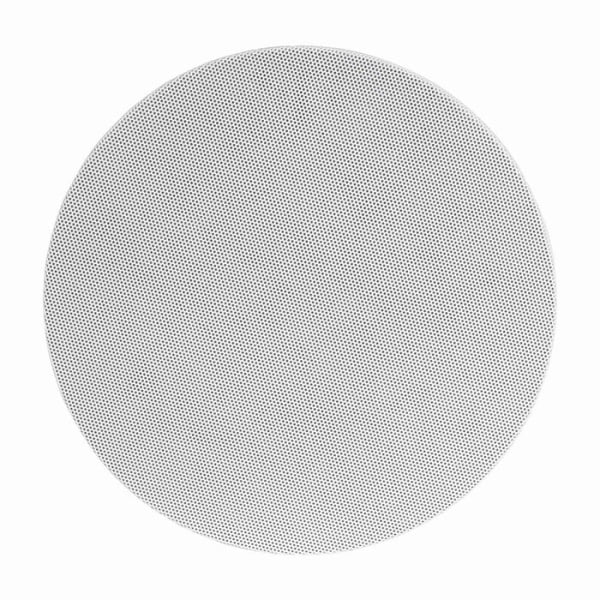

A slim profile paintable magnetic grill allows for the speaker to virtually disappear in the room

Specifications

• Speaker type: 2-way, rear side open
• Tweeter: Jet folded ribbon
• Woofer: 6-inch crystal aluminum cone
• Crossover frequency: 3,000 Hz
• Frequency response: 45 to 40,000 Hz
• Sensitivity: 88 dB at 2.83 v/1m
• Recommended amplifier power: 40 to 120 Watts
• Nominal/peak power handling: 120/160 Watts
• Nominal impedance: 4 Ohm
• Grill: Metal magnetic, paintable
• Overall diameter: 236.5mm
• Cut-out diameter: TBA
• Mounting depth: 173mm

What’s in the box

• Speaker x1
• White Paintable Grille x1
• Cutout Template x1
• Owners Manual x1
