PB-2000 Black Ash

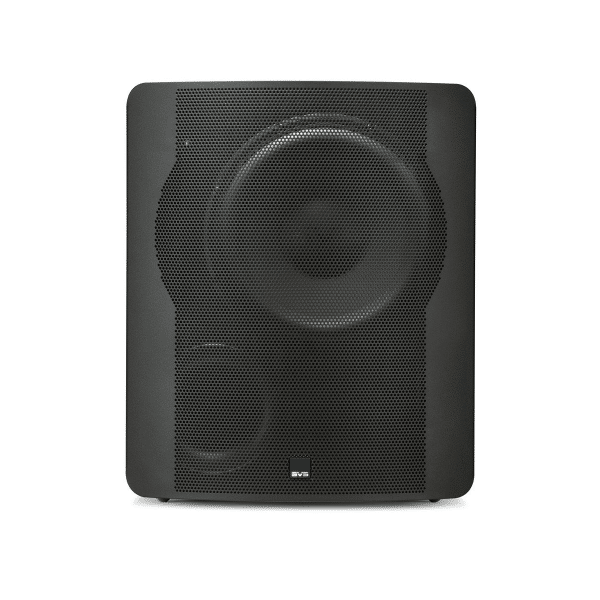

SVS PB-2000 Powered Subwoofer

• With its 500-watt amplifier, 12″ aluminum cone woofer, and flared, low-noise front port, the SVS PB-2000 delivers powerful bass that will rattle your home theater’s rafters.

A Ported Box That Breathes Deep

• The PB-2000 starts with a bass-reflex (ported) cabinet design that allows its long-throw 12″ driver to make wide excursions, creating high-output levels at very low frequencies.
• The sub’s powerful, high-efficiency 500-watt Class D amplifier features a built-in Digital Signal Processor (DSP) that dynamically controls amplifier power to ensure you hear deep, low-distortion bass no matter how loud your music and movies get.
• SVS placed the PB-2000’s flared, low-noise port on the front of the enclosure to minimize back-wall interaction for greater bass accuracy and easier sub placement.
• The PB-2000’s strong, rigid cabinet helps eliminate cabinet flex and resonance to keep your bass clean.

Easy System Integration

• Line-level inputs and outputs let you easily connect this sub to most audio systems.
• A Low Frequency Effects (LFE) input accepts the subwoofer connection from your A/V receiver.
• Its back-panel volume, crossover, and phase controls help you fine-tune the bass to ensure a perfect sonic match with your main speakers and your room.
• The sub includes four rubber feet that reduce surface contact area to decrease the amount of vibrations transmitted to the floor.
• The PB-2000 makes an ideal addition to home theater or stereo music setups in larger listening rooms.

Product Highlights:

• Frequency response: 17-260 hz (±3 db)
• Built-in class d amplifier delivers 500 watts rms of continuous power (1100 watts peak dynamic power)
• Advanced dsp processor maintains control over the subwoofer at all drive levels for refined, low-distortion sound
• Lightweight 12″ aluminum woofer cone with powder-coated cast aluminum basket for high efficiency and low distortion
• Bass reflex (ported) cabinet design
• Rear-mounted volume, crossover, phase, and power controls
• Digital actuator control knobs for precise and noise-free adjustment
• Continuously variable low-pass 50-160 hz crossover with a disable (lfe) setting for connecting an a/v receiver
• Continuously variable phase control (0-180°)
• Main power on/off switch plus auto standby/on mode
• Line-level/lfe rca inputs
• Filtered rca line outputs (fixed 80 hz, 12db/octave high-pass)
• Remote trigger input
• Protective non-resonant steel mesh grille
• Detachable power cord
• Black ash woodgrain vinyl finish
• 17-5/16″W x 20-15/16″H x 23-1/4″D
• Weight: 29.75 |kg.
• Warranty: 5 years

• Enclosure : Bass Reflex
• Video Shielded : No
• Woofer Size (inches) : 12
• Woofer Composition : Aluminum
• Firing Direction : Front
• Wireless : No
• Preamp-Level Inputs : Yes
• Speaker-Level Inputs : No
• Speaker-Level Outputs : No
• Low-Pass Crossover Freq : 50-160 Hz
• High-Pass Crossover Freq : 80 Hz
• Phase Switch : Yes
• Amplifier Output (watts) : 500
• Frequency Response : 17-260 Hz
• Height (inches) : 20-15/16
• Width (inches) : 17-5/16
• Depth (inches) : 26-7/8
• Weight : 29.75 Kg
• Warranty : 5 Years
